Weiand Speed Warrior Intake, Chevy Small Block V8, Black Ceramic Coated 8150BK

Weiand Speed Warrior Intake, Chevy Small Block V8, Black Ceramic Coated 8150BK
$497.99 ea
NEWARRIVING SOONEstimated Ship Date 08/07/2024 (If Ordered Today)19 Available from HOLLEY PERFORMANCE PRODUCTS as of 07/17/2024
Model: 4016563
STANDARD
DELIVERY

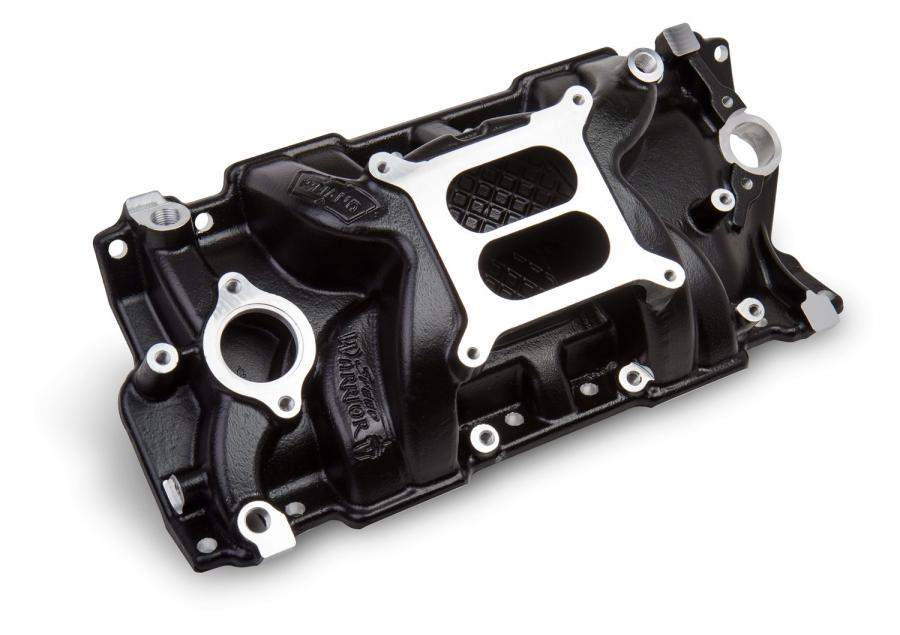

The Weiand Speed Warrior features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake perfect for your street and strip hot rod! Weiand developed the first ever aluminum intake manifold in 1937. Thirty years later Weiand developed complete blower drives for the GMC 6–71 supercharger. Today, Weiand is still at the forefront of intake manifold and blower development as well as high flow water pumps. To make more power you have to get more air to your engine. Look to Weiand as your power source!
Features:
  • Black ceramic coating provides an aggressive look to your engine compartment
  • Black ceramic is heat and corrosion resistant for long life and durability
  • Provides an easy to clean finish
  • Precision CNC machining
  • High Rise/Dual Plane Design
  • Square Bore Carburetor Flange
  • Exhaust Crossover for Improved Street Drivability (Standard Small Block Chevy Heads)
  • Power band: 1500-6700 RPM
  • Height: Front 4.19", Rear 5.27"
  • Port Size: 1.92” height, 1.16" width
Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G Plenum depth: From the carb flange to the bottom of the upper plenum is 2-3/16”. To the bottom of the lower plenum is 4-1/16”.
Installation Notes:
Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G Plenum depth: From the carb flange to the bottom of the upper plenum is 2-3/16”. To the bottom of the lower plenum is 4-1/16”.

Downloads:

Download Name File Size
199r10393rev1.pdf217.94KB

Specifications:

Barrels 4
Construction Cast
Emission Code 3
Engine Chevrolet Small Block Gen I
Finish Black
Front Height 4.19 inch
Fuel System Type Carb
Manifold Type High Rise
Part Type Engine Intake Manifold
Product Type Intake Manifold
Rear Height 1.16 inch
RPM Power Band 1500-6700
Warranty Limited 90 Day
