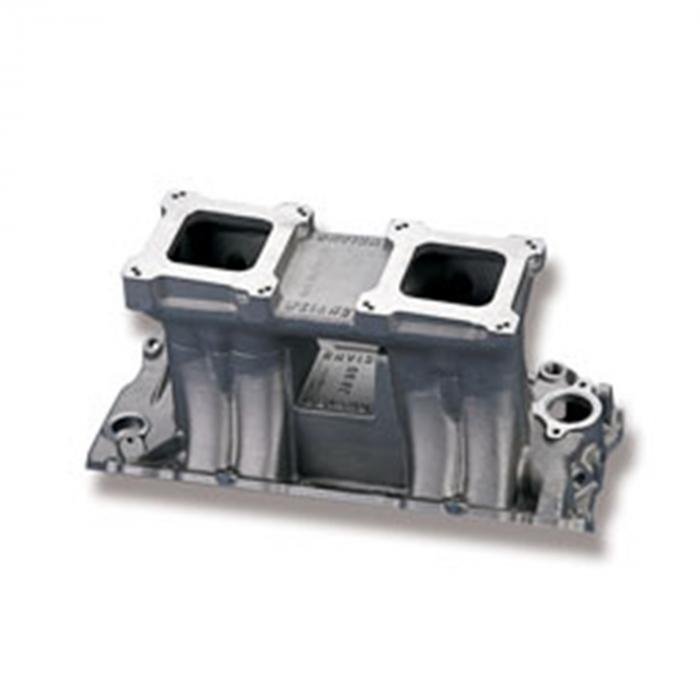

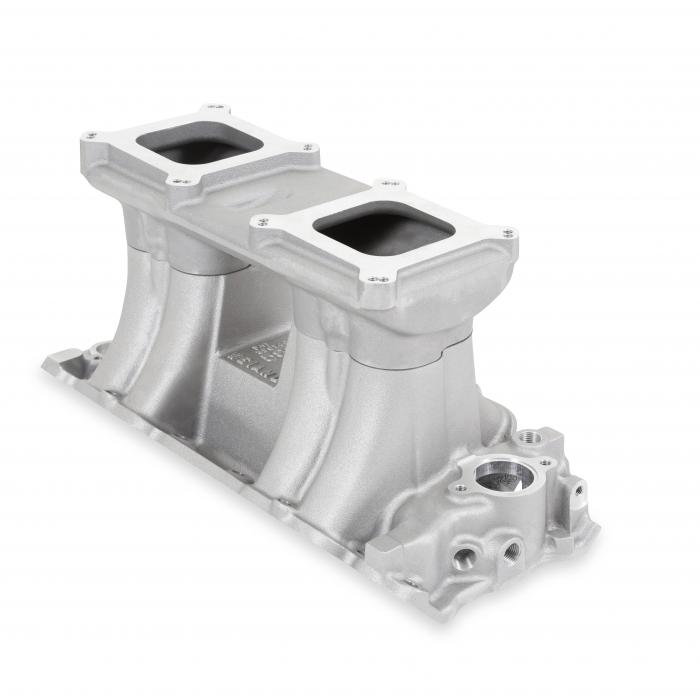

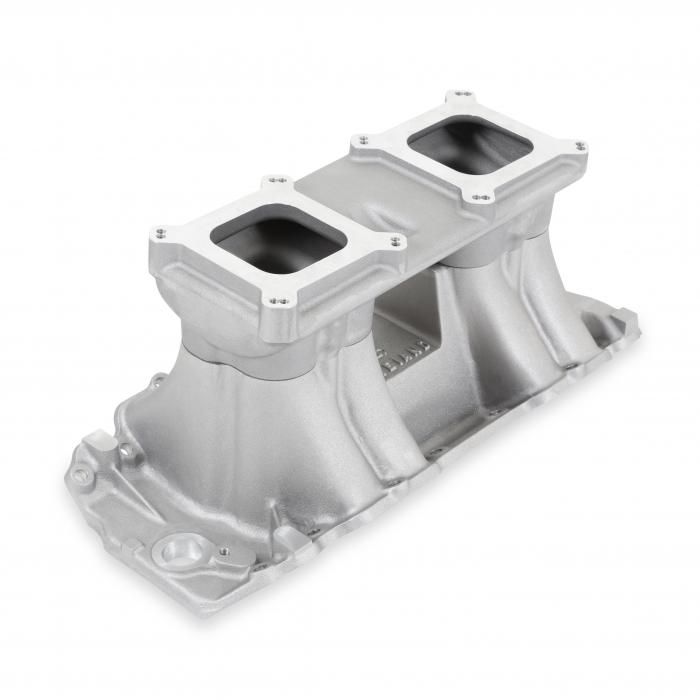

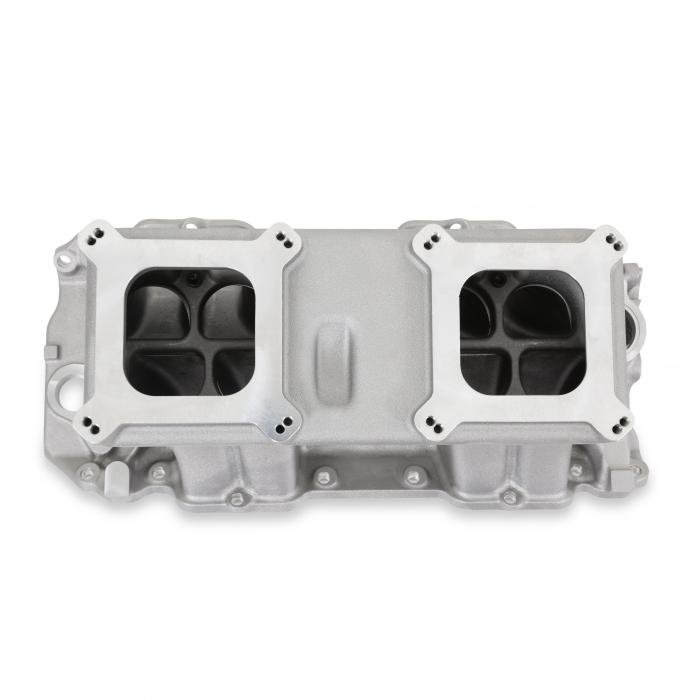

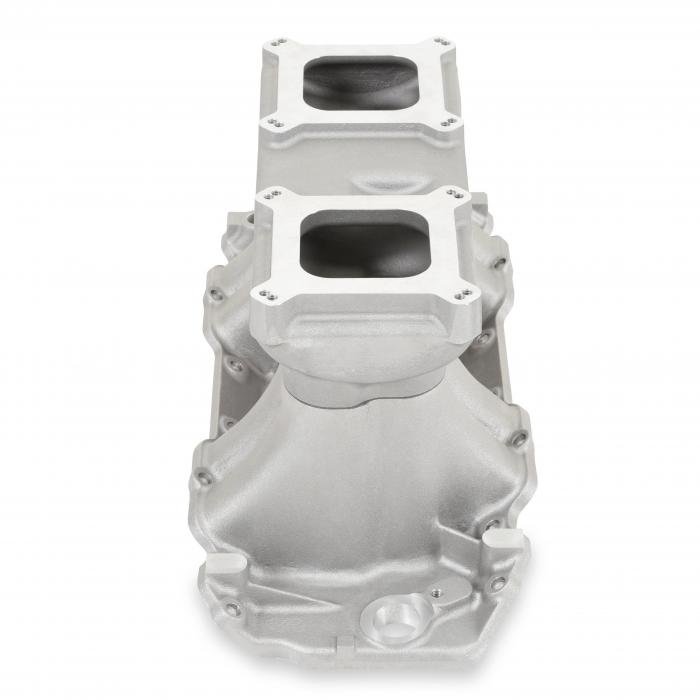

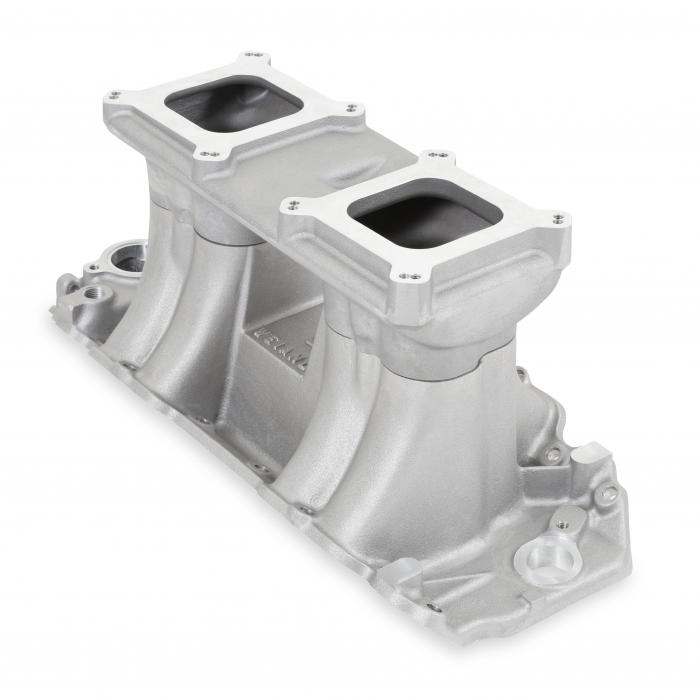

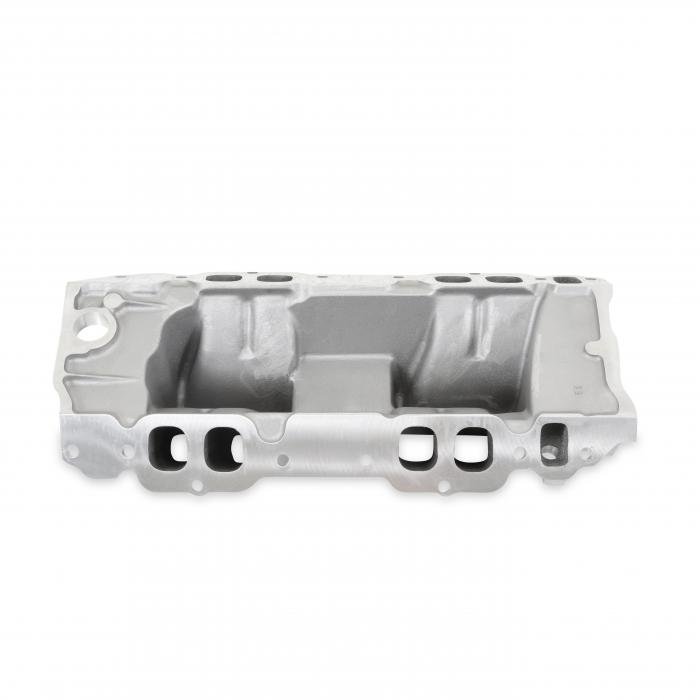

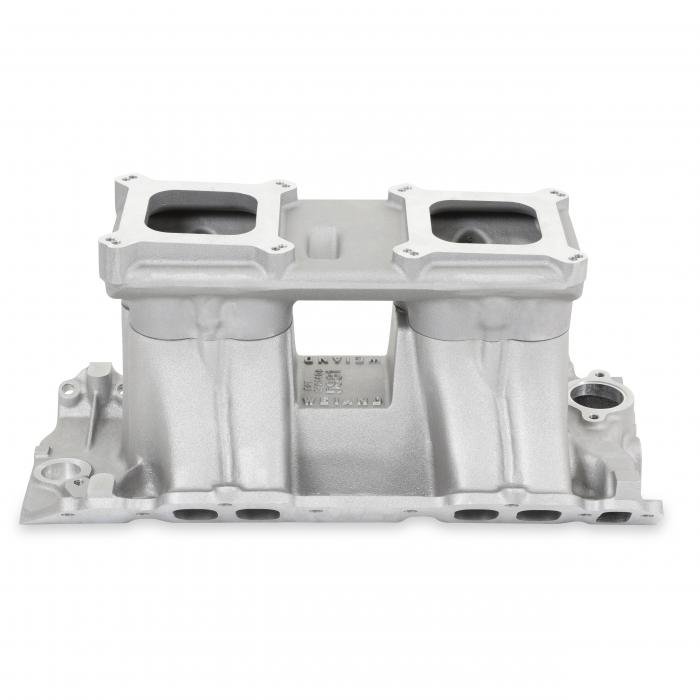

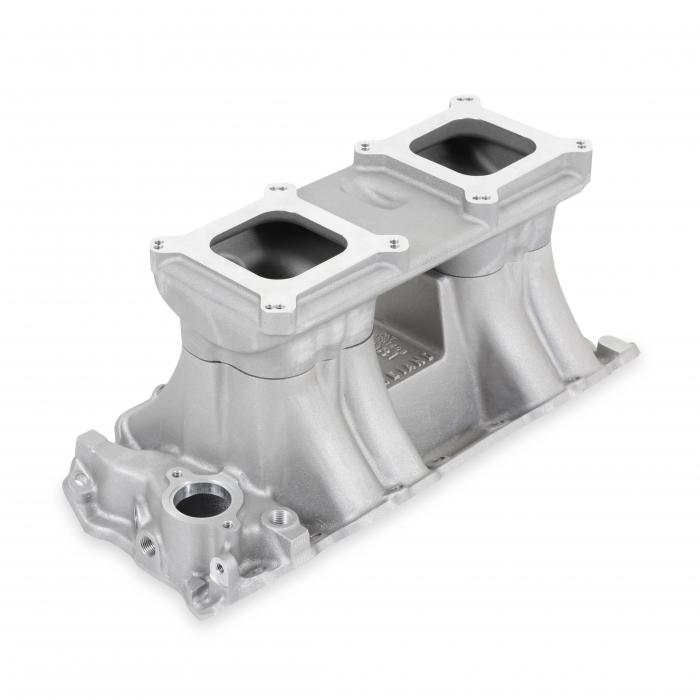

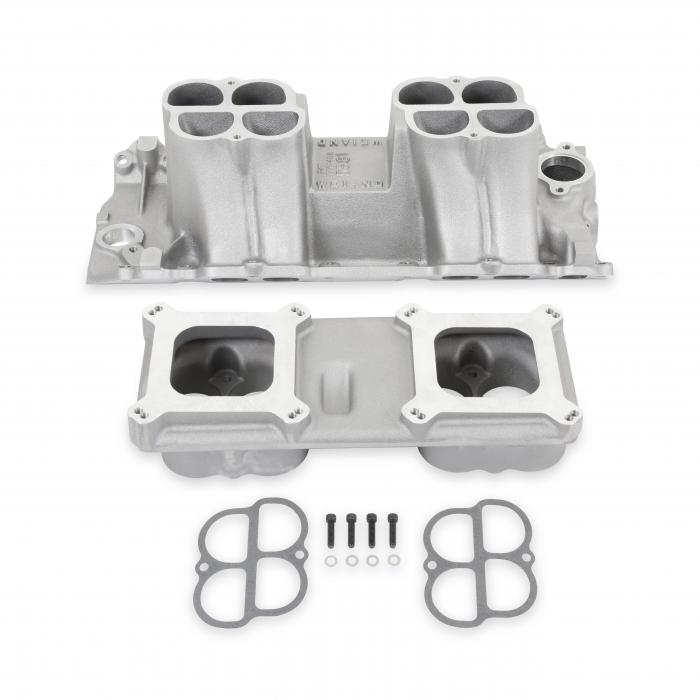

Weiand Nostalgic Series Hi-Ram Intake Manifold 1981

Weiand Nostalgic Series Hi-Ram Intake Manifold 1981
$733.99 ea
NEWBackordered until 10/15/2021Out of stock at HOLLEY PERFORMANCE PRODUCTS as of 09/21/2021
Model: 4016191
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 2,800 to 8,000 RPM. The WEIAND Hi-Ram, with it's patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice! This manifold is designed to be used with performance oval port heads. This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! *** GM HEI will not clear, Use Side-by-Side 2 x 4 Tunnel Ram Carburetor Linkage Kit # 4022. When using carburetors with vacuum operated secondary's, use Diaphragm Housing Covers # 20-28, for more even and balanced secondary operation. Will fit tall blocks with use of Weiand P/N 8204 manifold spacer plate kit.
Features:
  • 2 x 4 Carburetor Top
  • Square Flange Carburetor Mounting
  • 2500-7800 RPM Power Band
  • Special D-Shaped Port Runner Design
  • Large Volume Plenum
  • Height Front 10.12 in.; Rear 10.93 in.
  • Port Size 1.82 in. Height x 1.60 in. Width
  • Carb Flange Center-To-Center 9 11/16 in.
Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
Installation Notes:
GM HEI will not clear, Use Side-by-Side 2 x 4 Tunnel Ram Carburetor Linkage Kit # 4022. When using carburetors with vaccum operated secondaries, use Diaphragm Housing Covers # 20-28, for more even and balanced secondary operation.Will fit tall blocks with use of Weiand P/N 8206 manifold spacer plate kit.

About Weiand

To make more power you have to get more air into your engine. Look to Weiand as your power source, or partner with products from other Holley companies, to give you even more power.

Downloads:

Download Name File Size
w511rev1.pdf21.51KB
w537rev.pdf82.77KB
199r11127.pdf6.43MB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Chevrolet Chevelle 1966 6.5L / 396 / V8 Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet Chevelle 1968 6.5L / 396 / V8 Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet Chevelle 1969 6.5L / 396 / V8 Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet Chevelle 1970 7.4L / 454 / V8
6.6L / 402 / V8
6.5L / 396 / V8
Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet Chevelle 1971 7.4L / 454 / V8 Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet Chevelle 1972 7.4L / 454 / V8
6.6L / 402 / V8
Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet Chevelle 1973 7.4L / 454 / V8 Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet El Camino 1969 6.5L / 396 / V8 Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet El Camino 1970 7.4L / 454 / V8
6.6L / 402 / V8
Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet El Camino 1971 7.4L / 454 / V8
6.6L / 402 / V8
Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet El Camino 1972 7.4L / 454 / V8
6.6L / 402 / V8
Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet El Camino 1973 7.4L / 454 / V8 Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet El Camino 1974 7.4L / 454 / V8 Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet El Camino 1975 7.4L / 454 / V8 Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet Malibu 1973 7.4L / 454 / V8 Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet Malibu 1974 7.4L / 454 / V8 Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit
Chevrolet Malibu 1975 7.4L / 454 / V8 Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mounting; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;Legal for Racing Use Only
Carbs w/Vaccum Op. Secondaries Use Holley Diaphragm Housing Cover PN[20-28]~Incl. 502ci Crate Engines w/High Performance Oval Port Heads~Not For Use w/HEI Distributors~Use Side By Side 2x4 Tunnel Ram Carb Linkage Kit PN[4022]~Will Fit Tall Blocks w/ Use of PN [8206] Manifold Spacer Plate Kit

Specifications:

Construction Cast
Cylinder Head Type Standard
Emission Without EGR
Emission Code 4
Engine Chevy Big Block V8
Engine Make/Size Chevy Big Block V8
Finish Satin
Front Height 10.120 in.
Fuel System Type Carb
Manifold Type Hi-Ram
Number of Carbs One
Part Type Engine Intake Manifold
Position Upper
Rear Height 10.930 in.
RPM Power Band 2800-8000
RPM Range 2800-8000
Usage Racing
