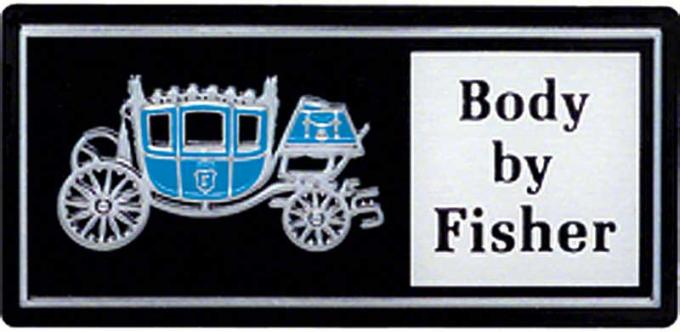

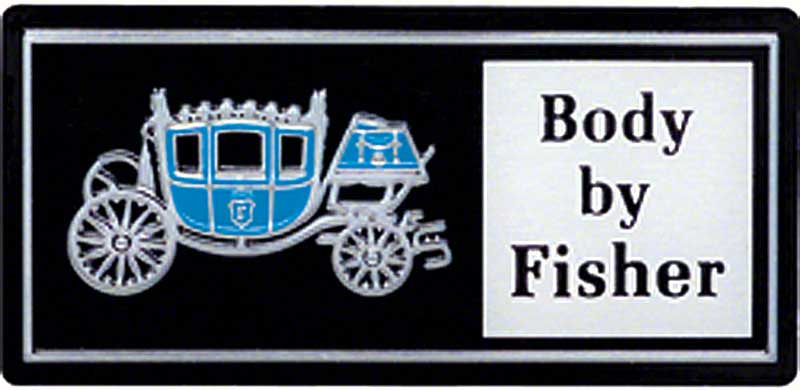

Correct reproduction "B ody by Fisher" door opening sill plate emblem for various 1978-90 Buick, Chevrolet, Pontiac, and Oldsmobile models. Each emblem is correctly stamped in aluminum material to exact specifications featuring the Fisher Coach design and "Body By Fisher" wording. Each emblem features a heat activated backing for strong factory style adhesion. Sold individually.
Officially Licensed by General Motors
Made in the USA
Buick Applications
1978-1987 Buick Regal
1984-1987 Buick Grand National
1983-1986 Buick Type T
1987-1987 Buick GNX
Chevrolet Applications
1980-1985 Chevrolet Impala
1980-1990 Chevrolet Caprice
1978-1988 Chevrolet Monte Carlo
1978-1983 Chevrolet Malibu
1978-1988 Chevrolet El Camino
Pontiac Applications
1980-1980 Pontiac Grand Am
1980-1981 Pontiac Lemans
1978-1981 Pontiac Grand Prix
1980-1981 Pontiac Bonneville
1980-1981 Pontiac Catalina
1984-1986 Pontiac Parisienne
1987-1989 Pontiac Safari
1983-1986 Pontiac Bonneville
1983-1987 Pontiac Grand Prix
Oldsmobile Applications
1978-1981 Oldsmobile Cutlass
1980-1985 Oldsmobile Delta 88
1982-1990 Oldsmobile Custom Cruiser
1982-1985 Oldsmobile 98 Regency
1982-1988 Oldsmobile Cutlass
Note: Applied via heat fusion. Backing is heat-fused activated.
Heat Fused Emblems Instructions:
REQUIRED TOOLS:
Variable Temperature Heat Gun
Heat Resistant Gloves
1 Small "C" Clamp or Similar Device
2 Small Blocks of Wood or Similar Item
Step 1:
Prep the area where the heat fused emblem is to be applied (Sill plate). Be sure to remove any oil or dirt for best adhesion. You can use a number of different chemicals here like paint prep , acetone, or even windex. Removing any grease, oil, or dirt will give the best results. Step 2:
Find a suitable area to heat the emblem. Using protective gloves heat the emblem's dry back adhesive film. It will begin to transform from off white color to yellow coloration once the adhesive is ready for to be applied. Step 3: Once the adhesive back has been heated as mentioned in step 2 , Carefully place the emblem in the desired location on the sill plate. Step 4: Use two small blocks of wood, or similar items and place them to support the emblem and carefully clamp in place. Be sure to take care and not damage the surface of the emblem or material it is being adhered to. Once clamped in place ,let it cool. Remove clamp and blocks once the emblem and area has cooled.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
