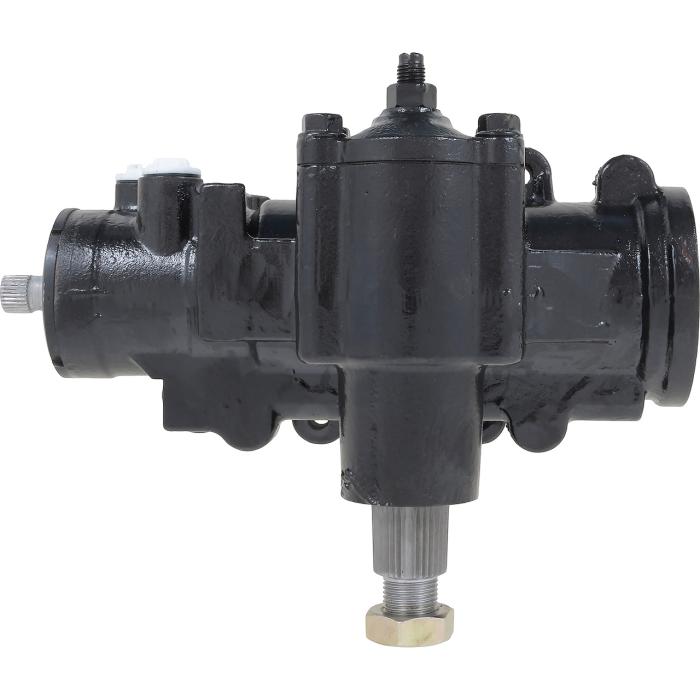

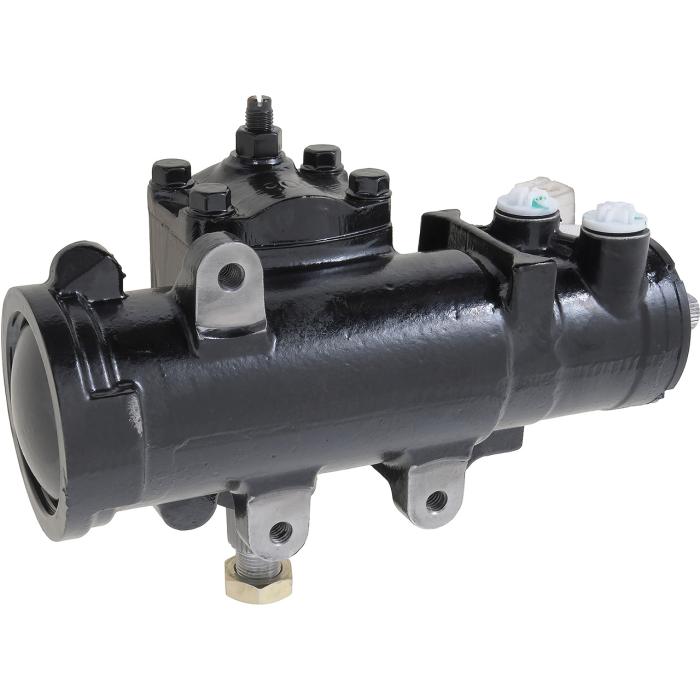

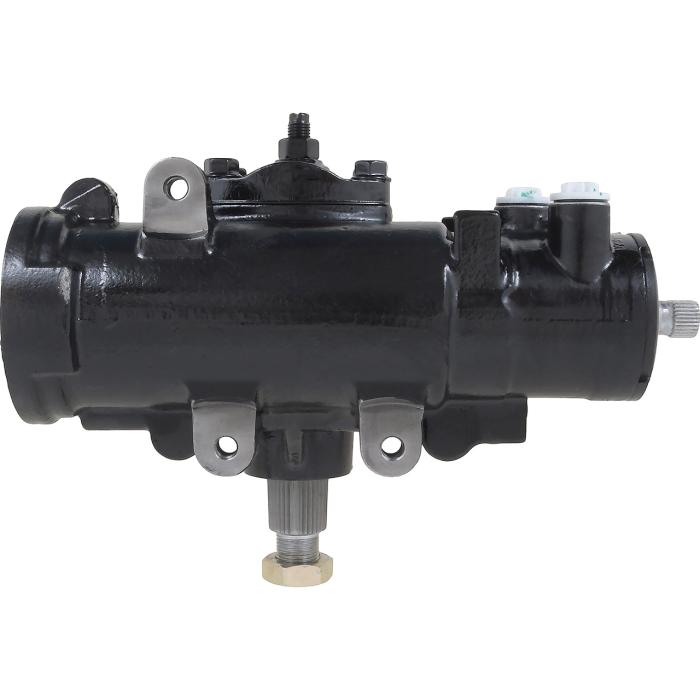

Replace a non working or worn out gear box with this quality reproduction power steering gear box. This steering box contains no remanufactured parts. It features an all new main casting, sector shaft, and internals. Every box 100% tested for leaks, function, and performance. Replace that worn steering box with a brand new unit and experience the difference in steering handling and performance.
Specifications: 27-7560
Type: Power
Power Assisted: Yes
Hose Port Type: O-Ring
Splined Input Shaft: Yes
Mounting Hardware Included: No
Total Turns Lock To Lock: 3
Input Shaft Diameter: 19.9898 MM (0.787 IN)
Input Shaft Spline Quantity: 25
Output Shaft Diameter: 31.75 MM (1.25 IN)
Output Shaft Spline Quantity: 32
Output Shaft Thread Diameter: 21.95 MM (0.864 IN)
Pressure Port Thread Diameter: 17.73 MM (0.698 IN)
Pressure Port Thread Size: 18x1.5
Return Port Thread Diameter: 15.75 MM (0.62 IN)
Return Port Thread Size: 16x1.5
Vehicle Applications for Cardone 27-7560
1993-1996 Buick Roadmaster
1995-1999, 2001, 2004-2005 Chevrolet Blazer
1995-1996 Chevrolet Caprice
1995-1996 Chevrolet Impala
1995-2003 Chevrolet S10
1995-1999, 2001, 2004 GMC Jimmy
1995-2003 GMC Sonoma
1996-2000 Isuzu Hombre
1996-1998 Jeep Cherokee
1996-1998 Jeep Grand Cherokee
1997-2002 Jeep TJ
1997-2002 Jeep Wrangler
Additional Information
Important: The casting on this steering box may differ in appearance from the factory box but will fit and function the same or better than the original.
Buick Applications
1993 - 1996 Buick Roadmaster
Chevrolet Applications
1995 - 1996 Chevrolet Caprice
1995 - 1996 Chevrolet Impala
Chevrolet Truck Applications
1995 - 2005 Chevrolet Blazer
1995 - 2003 Chevrolet S10
GMC Truck Applications
1995 - 2004 GMC Jimmy
1995 - 2003 GMC Sonoma
Isuzu Truck Applications
1996 - 2000 Isuzu Hombre
Jeep Truck Applications
1996 - 1998 Jeep Cherokee
1996 - 1998 Jeep Grand Cherokee
1997 - 2002 Jeep TJ
1997 - 2002 Jeep Wrangler
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
