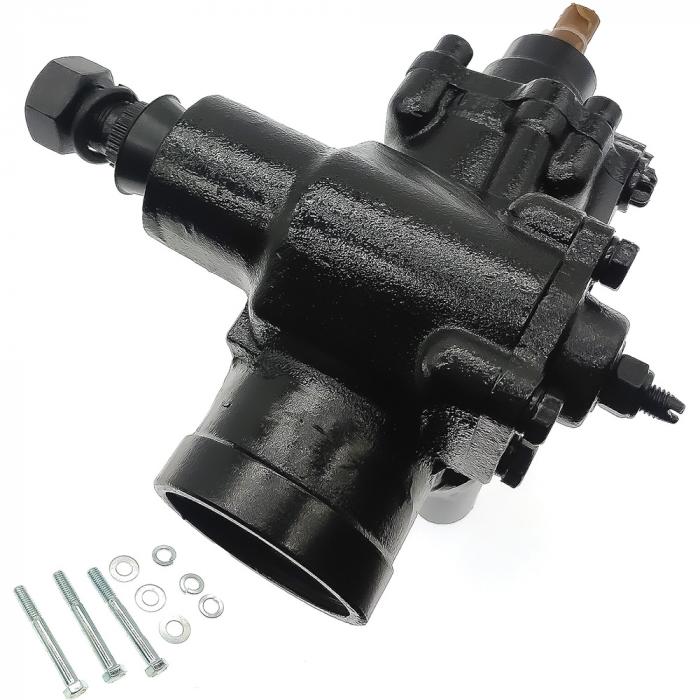

Power steering gearbox for 1958-64 Biscayne, Bel Air, or Impala models. The 500 Series power steering box is a key component iin most high performance modern style power steering systems. This box is a superb value and perfect as the basis of your power steering project. Mounting bosses are integrated into the casting, eliminating the need for an external bracket. Designed to line up perfectly to your column without shims or spacers. This 500-Series is a brand new box with a new housing, new internals, new gaskets, and new seals. No rebuilt or reconditioned parts. Utilizes a factory manual steering pitman arm and the box is setup for flared fittings not o-ring style fittings.
Product Specifications:
Quick ratio: 14:1 ratio
100% brand new parts (nothing rebuilt)
Bolts directly to frame rail (may require notching the radiator)
3-1/2" turns lock to lock
11/16" pressure port and 5/8" return port
3/4"-30 input shaft
3/4-30 output shaft
Provides more header clearance than a 605 gearbox
Overall distance from top of adjuster to end of pitman shaft is 14"
Superior directional control and better road feedback
Recirculating ball gears provide low friction and increased steering response
Open-centered, rotary-type valve (smooth operation throughout the steering range)
Chevrolet Applications
1958- 1964 Chevrolet Bel Air
1958- 1964 Chevrolet Biscayne
1958- 1961 Chevrolet Brookwood
1958- 1958 Chevrolet Del Ray
1958- 1964 Chevrolet Impala
1959- 1961 Chevrolet Kingswood
1958- 1961 Chevrolet Nomad
1959- 1961 Chevrolet Parkwood
1958- 1958 Chevrolet Yeoman
Chevrolet Truck Applications
1959- 1960 Chevrolet El Camino
1958- 1960 Chevrolet Sedan Delivery
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
