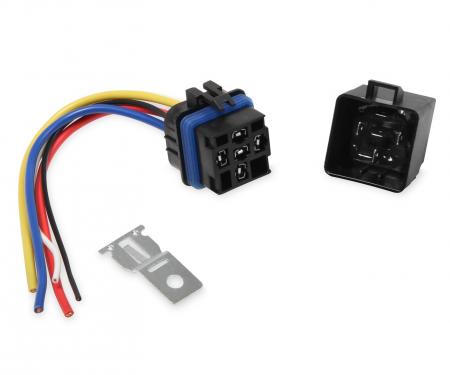

MSD SPST Relay w/Socket Harness 89611

MSD SPST Relay w/Socket Harness 89611
MSD SPST Relay w/Socket Harness 89611MSD SPST Relay w/Socket Harness 89611
$43.99 ea
NEWARRIVING SOONEstimated Ship Date 07/08/2024 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 06/18/2024
Model: 4017994
STANDARD
DELIVERY
MSD's waterproof relay are ideal for use on electric fuel pumps, water pumps, cooling fans, off-road lights, and any other application that is exposed to muddy or wet conditions. This relay handles 40 amps momentary and 30 amps for continuous use. The pigtail harness has 7" long leads w/ heavy duty 12 & 18 gauge wire. The connector has the wires molded in rubber and a gasket for a leak proof seal. Ideal for use on marine applications and vehicles that are power-washed out (Jeeps, 4x4 Trucks, UTV's, and dirt track race cars).
Features:

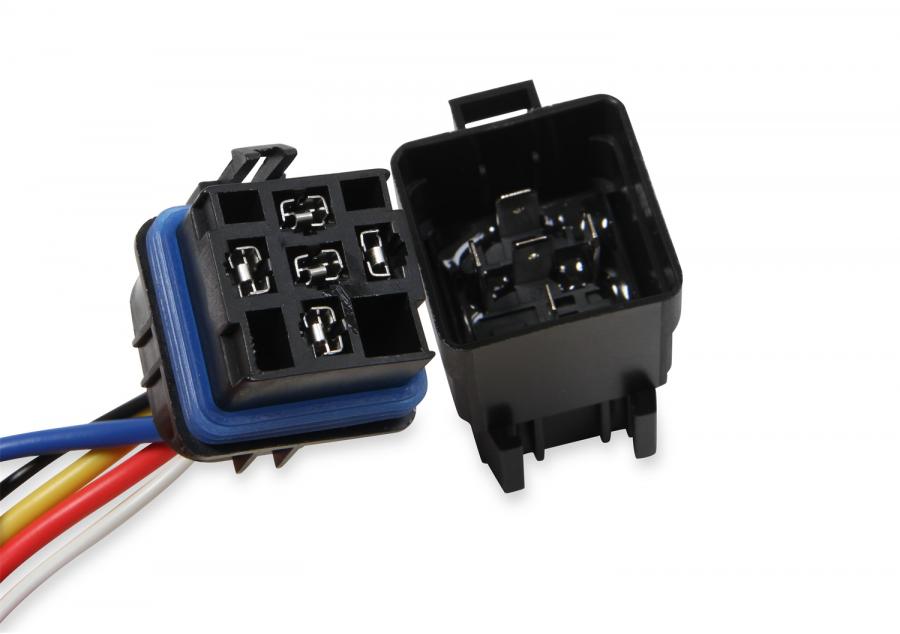

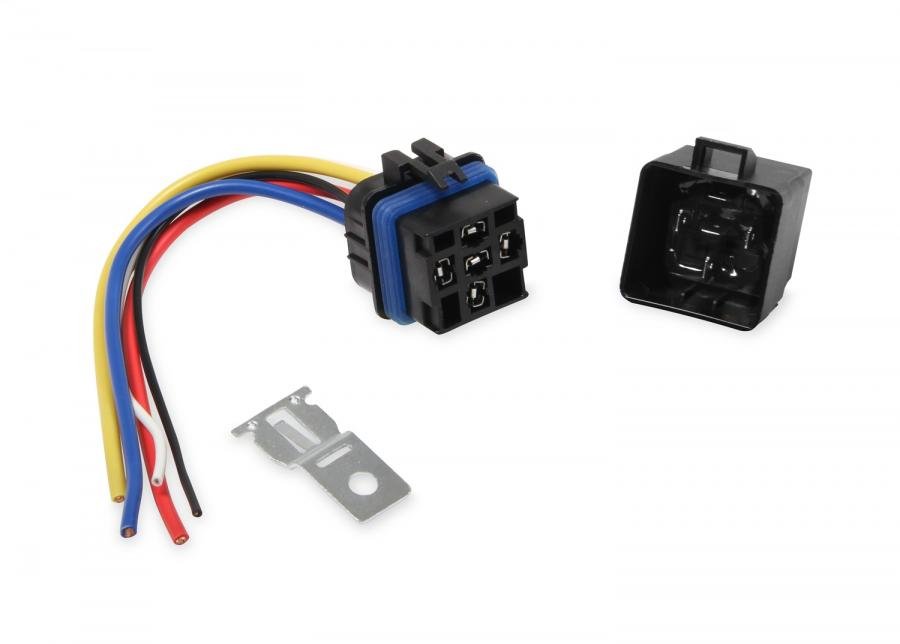

  • Waterproof relay w/ pigtail harness & sealed connector
  • 40/30Amp – 30 AMP continuous load & 40 AMP momentary
  • 12-Volts DC
  • Works in normally open or normally closed circuits
  • Pigtail wires are 7” long
  • Wire Gauge: (3) 12 gauge wires on blue (30 common), yellow (87 normally open), red (87a normally closed) – (2) 18 gauge wires on black (85 ground) & white (86 +12V)
  • Metal mounting bracket – can be mounted under-hood or just about any other location on vehicle
  • Ideal for use in: marine, dirt track cars, and off-road trucks & Jeeps
About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name File Size
frm35213_pn_89611_v1.pdf259.63KB

Specifications:

Emission Code 5
Part Type Multi Purpose Relay
Product Type Relays
Proposition 65 www.P65Warnings.ca.gov
Warranty Limited 1 Year Warranty
