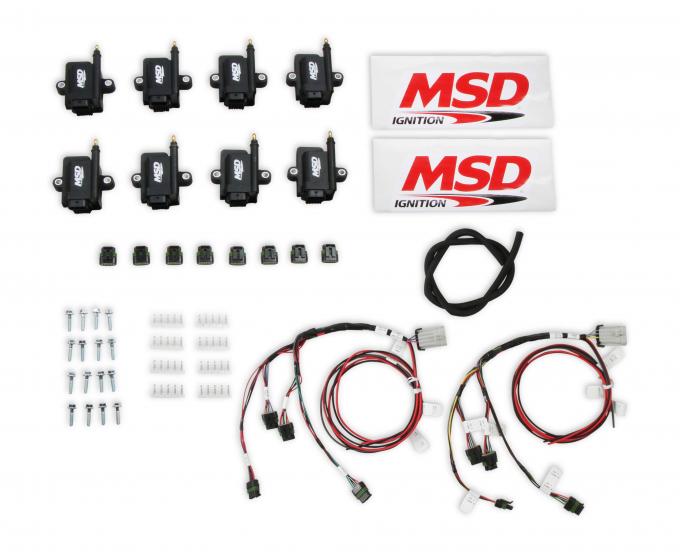

MSD Ignition Coil, Smart, Big Wire Kit, Black 82893-KIT

MSD Ignition Coil, Smart, Big Wire Kit, Black 82893-KIT
MSD Ignition Coil, Smart, Big Wire Kit, Black 82893-KITMSD Ignition Coil, Smart, Big Wire Kit, Black 82893-KITMSD Ignition Coil, Smart, Big Wire Kit, Black 82893-KITMSD Ignition Coil, Smart, Big Wire Kit, Black 82893-KITMSD Ignition Coil, Smart, Big Wire Kit, Black 82893-KITMSD Ignition Coil, Smart, Big Wire Kit, Black 82893-KITMSD Ignition Coil, Smart, Big Wire Kit, Black 82893-KITMSD Ignition Coil, Smart, Big Wire Kit, Black 82893-KITMSD Ignition Coil, Smart, Big Wire Kit, Black 82893-KIT
$1,490.99 ea
NEWARRIVING SOONEstimated Ship Date 03/15/2024 (If Ordered Today)5 Available from HOLLEY PERFORMANCE PRODUCTS as of 02/22/2024
Model: 4018155
STANDARD
DELIVERY
The MSD Smart Coil Big Wire Kit allows you to run dwell time over 5 milliseconds to gain the most of the Smart Coils. It will allow the coil to produce 50,000 peak voltage and peak energy of 190 millijoules, this means you get hotter spark at the plug to burn the maximum amount of fuel in each cylinder to reach the optimal horsepower out of your engine. It is compatible with Holley EFI and many other aftermarket electronic fuel injection systems and will run on traditional 12 or 16 volt electrical systems found in race applications. Unique elongated mounting holes accommodate IGN-1A mounting brackets or allow it to bolt in place of an LS coil with 72mm bolt spacing. The MSD Smart Coil will bolt right onto Holley LS cast aluminum valve covers for a super clean look. Available in red or black.
Features:
  • Contains two terminated harnesses with 7-pin connector for easier plug-in to Holley LSx main harness or factory GM LSx harness
  • The harnesses are labeled for different engine types for GM and Ford cylinder banks even Holley universal coil near plug harness
  • More spark energy than any other IGN-1A smart coil on the market for maximum fuel burn during combustion sequence
  • Built-in ignitor for compatibility with Holley EFI and many other aftermarket ECU’s
  • Maximum operating voltage of 17 volts – for compatibility with both 12 volt and 16 volt electrical systems found in many performance/race applications
  • Same wiring pinout as other IGN-1A coils for easy plugin upgrades
  • Elongated mounting holes to allow direct replacement of IGN-1A coils and will bolt in place of factory LS 1/2/3/6/7 coils with 72mm bolt spacing
  • Direct bolt-on to Holley cast aluminum LS valve covers with 72mm bolt spacing
  • Available in red or black to match your build
The supplied connectors and pins are "Pull to Seat " This means that you need to insert the wire through the connector from the back, crimp the pin and pull it back into the connector for assembly. Always use proper crimping tools to ensure a proper connection.
Installation Notes:
The supplied connectors and pins are "Pull to Seat " This means that you need to insert the wire through the connector from the back, crimp the pin and pull it back into the connector for assembly. Always use proper crimping tools to ensure a proper connection.
About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name File Size
frm35628_82893.pdf1MB

Videos:

Specifications:

Coil Type Smart Coil
Color Black
Emission Code 4, 3
Inductance 5.2 mH
Maximum Voltage 50,000 Volts
Part Type Ignition Harness
Peak Current 201 mJ
Primary Resistance .55 Ohms
Product Type Ignition Coil
Proposition 65 www.P65Warnings.ca.gov
Quantity 8-pack
Turns Ratio 69:1
Warranty Limited 1 Year Warranty
