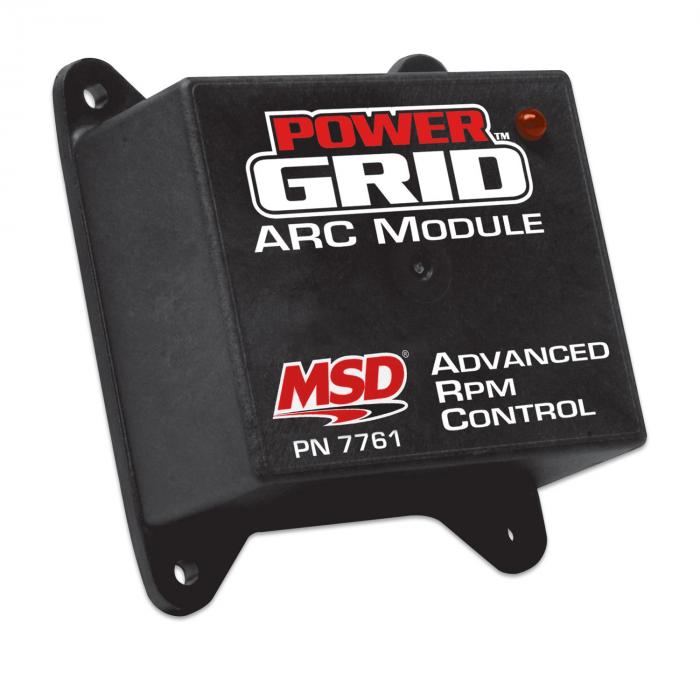

MSD Advanced RPM Control Module (ARC) 7761

MSD Advanced RPM Control Module (ARC) 7761
MSD Advanced RPM Control Module (ARC) 7761
$1,258.99 ea
NEWARRIVING SOONEstimated Ship Date 03/13/2024 (If Ordered Today)14 Available from HOLLEY PERFORMANCE PRODUCTS as of 02/20/2024
Model: 4017422
STANDARD
DELIVERY

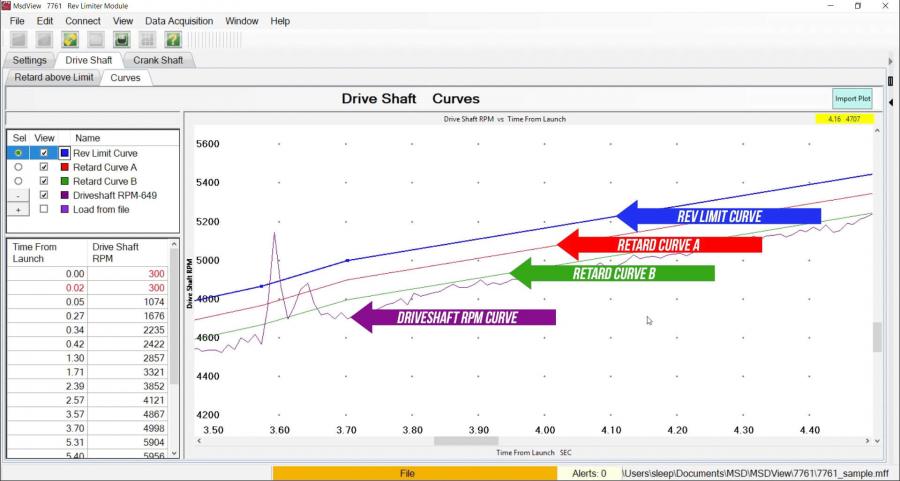

Now there is even more control with the PN 7761 module for the Power Grid System Controller. This module sets rpm limits based on slew rate (rpm acceleration) or based on time since launch. All of this is programmed seamlessly in MSD View. The ARC module stands for Advanced RPM Control, it basically allows your race car to remain consistent, pass after pass, controlling your engines rpm curve during a pass. This helps you get down the track quicker and far more consistent. By using the MSD View software we can control the rpm down to a hundredth of a second and control the driveshaft speed for maximum traction. We can also pull out timing for a split second should we encounter tire slip. Set 3 different timing Retard curves and a Rev Limit Curve to control wheelspin.
Features:
  • Plugs into CAN-BUS Bridge
  • For use with Power Grid Controller
  • 4-Connector CAN-Bus Hub required
*Must use a driveshaft sensor with the ARC module. Get these from Racepak.com Racepak Hall Effect Sensor PN 800-SS-MSC-5 Racepak 8 Magnet Split Collar
Installation Notes:
*Must use a driveshaft sensor with the ARC module. Get these from Racepak.com Racepak Hall Effect Sensor PN 800-SS-MSC-5 Racepak 8 Magnet Split Collar

About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name File Size
7761_add.pdf46.66KB
7761.pdf184.74KB

Videos:

Specifications:

Emission Code 4
Part Type Engine Ignition RPM Governor
Product Type Modules
Proposition 65 www.P65Warnings.ca.gov
Warranty Limited 1 Year Warranty
