MSD Crank Trigger Distributor 8558

MSD Crank Trigger Distributor 8558
MSD Crank Trigger Distributor 8558MSD Crank Trigger Distributor 8558MSD Crank Trigger Distributor 8558MSD Crank Trigger Distributor 8558MSD Crank Trigger Distributor 8558MSD Crank Trigger Distributor 8558
$655.99 ea
NEWARRIVING SOONEstimated Ship Date 10/16/2023 (If Ordered Today)12 available from HOLLEY PERFORMANCE PRODUCTS as of 09/23/2023
Model: 4017815
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

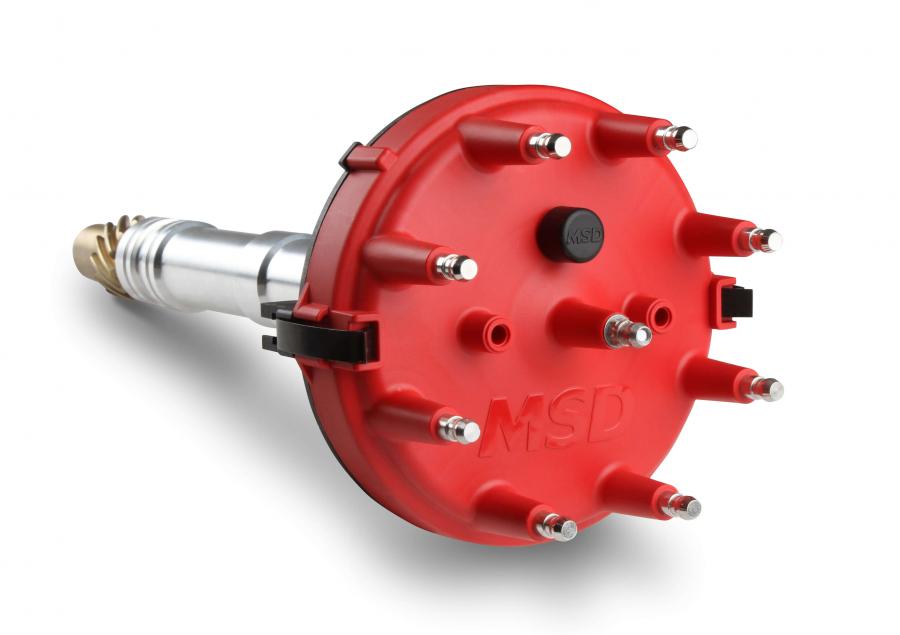

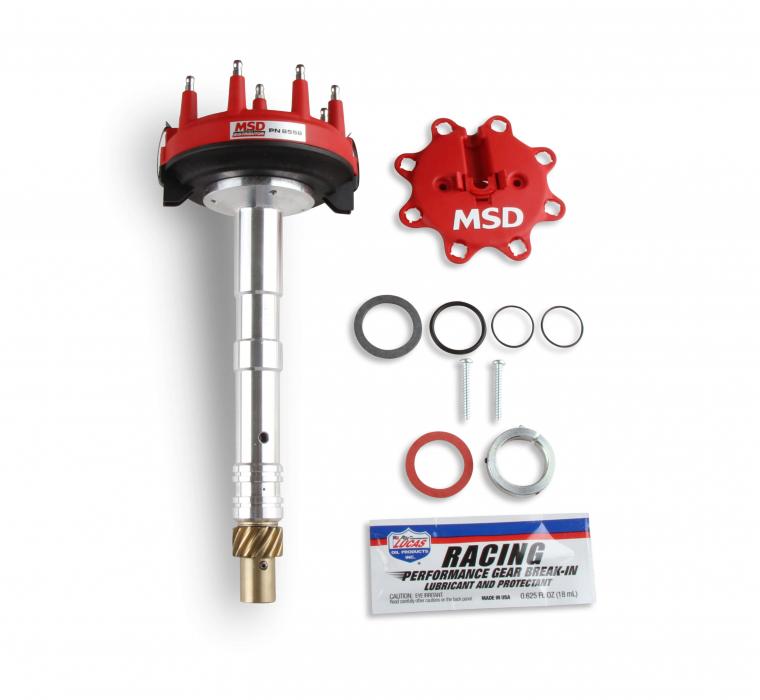

The unique design of these distributors fit tight intake systems while still transferring the high voltage of the MSD racing ignition to the spark plugs. The high voltage carrying capabilities are the result of several features which have been designed into these low-profile distributors. This includes a large diameter cap with wide spaced terminals and an injection molded Rynite rotor with thick vanes to stir up the air inside the cap. The high dielectric Rynite base also prevents arcing to the billet housing. Since these distributors are used primarily in racing applications, an oversized steel shaft is responsible for delivering the sparks. This shaft is QPQ coated for friction reduction and receives guidance from a sealed ball-bearing assembly and an extra long, precision sintered bushing for smooth operation. Note: must be used with an MSD crank trigger and ignition control.
Features:
  • Designed to fit low in the block to clear firewall/intake combos
  • Supplied w/Bronze Gear
  • Supplied w/Large Diameter HEI Style Distributor Cap And Rotor
  • Must Be Used w/An MSD Crank Trigger And MSD Ignition Control
  • O-ring seals can be installed for oil press. control (Mods only)
  • Special oil tract improves lubrication to the dist./cam gear
  • QPQ coated polished steel shaft; guided by sealed ball bearings
  • Oversized Polished Steel Shaft w/QPQ Coating
  • Adj. slip collar mounting flange for engines w/modified deck hts.
  • CNC machined billet aluminum housing and Dupont Rynite base
  • Red Cap
Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name File Size
frm28841__84697_8558_84698_846973_85583_0206.pdf111.16KB
8558.pdf118.98KB
8558_add.pdf57.24KB
8558_tb.pdf1.66MB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Chevrolet Chevelle 1964 5.3L / 327 / V8
4.6L / 283 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Chevelle 1965 5.3L / 327 / V8
4.6L / 283 / V8
5.4L / 327 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Chevelle 1966 5.3L / 327 / V8
4.6L / 283 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Chevelle 1967 5.3L / 327 / V8
4.6L / 283 / V8
5.4L / 327 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Chevelle 1968 5.3L / 327 / V8
5.0L / 307 / V8
5.4L / 327 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Chevelle 1969 5.0L / 307 / V8
5.7L / 350 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Chevelle 1970 5.0L / 307 / V8
6.6L / 400 / V8
5.7L / 350 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Chevelle 1971 5.0L / 307 / V8
6.6L / 400 / V8
5.7L / 350 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Chevelle 1972 5.0L / 307 / V8
5.7L / 350 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Chevelle 1973 5.0L / 307 / V8
5.7L / 350 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet El Camino 1964 5.3L / 327 / V8
4.6L / 283 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet El Camino 1965 5.3L / 327 / V8
4.6L / 283 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet El Camino 1966 5.3L / 327 / V8
4.6L / 283 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet El Camino 1967 5.3L / 327 / V8
4.6L / 283 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet El Camino 1968 5.3L / 327 / V8
5.0L / 307 / V8
5.4L / 327 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet El Camino 1969 5.3L / 327 / V8
5.0L / 307 / V8
5.7L / 350 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet El Camino 1970 5.0L / 307 / V8
6.6L / 400 / V8
5.7L / 350 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet El Camino 1971 5.0L / 307 / V8
5.7L / 350 / V8
6.6L / 400 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet El Camino 1972 5.0L / 307 / V8
5.7L / 350 / V8
6.6L / 400 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet El Camino 1973 5.0L / 307 / V8
5.7L / 350 / V8
6.6L / 400 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet El Camino 1974 6.6L / 400 / V8
5.7L / 350 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Laguna 1973 5.7L / 350 / V8 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Laguna 1974 6.6L / 400 / V8
5.7L / 350 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Malibu 1964 5.3L / 327 / V8
4.6L / 283 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Malibu 1965 5.3L / 327 / V8
4.6L / 283 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Malibu 1966 5.3L / 327 / V8
4.6L / 283 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Malibu 1967 5.3L / 327 / V8
4.6L / 283 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Malibu 1973 5.0L / 307 / V8
5.7L / 350 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only
Chevrolet Malibu 1974 6.6L / 400 / V8
5.7L / 350 / V8		 Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;Intended For Race Use Only

Specifications:

Color Red
Distributor Type Crank Type w/Mech. Tach Drive
Emission Code 4
Engine Make/Size Chevy Small Block (262-400), Chevy Big Block (396-454)
Part Type Distributor
WARNING CA Proposition 65 WARNING: Cancer and Reproductive Harm
