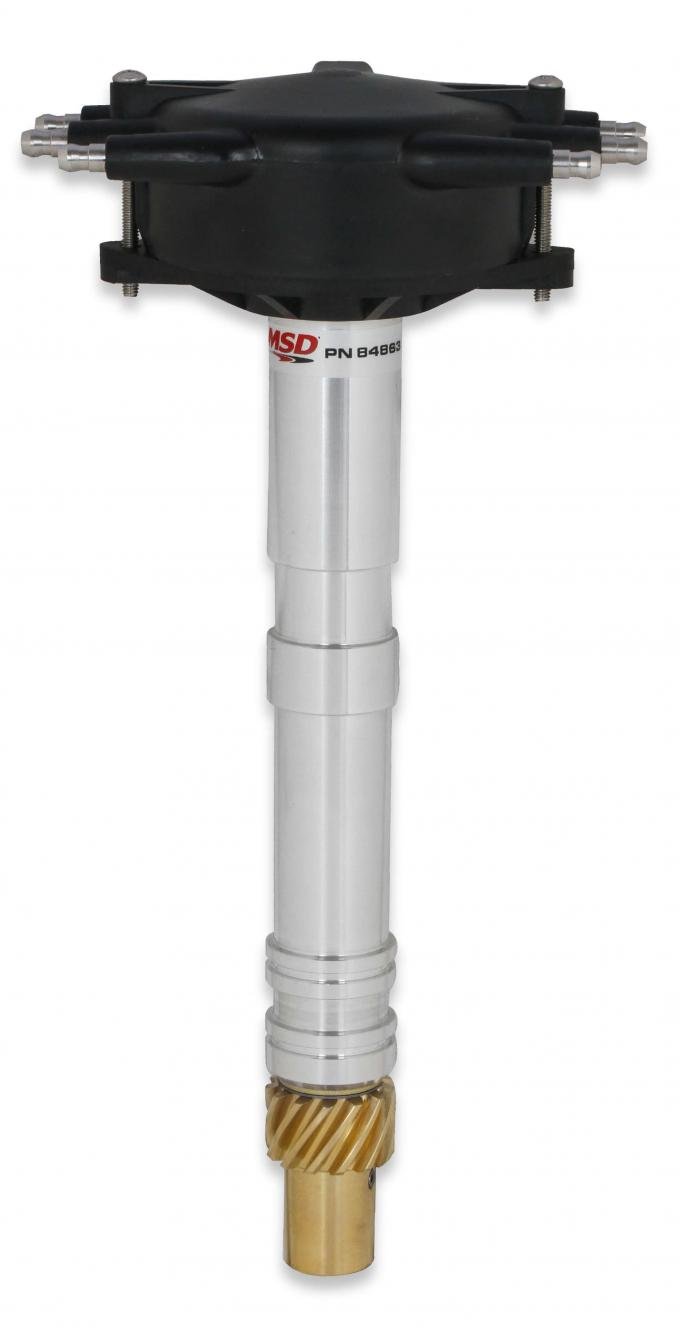

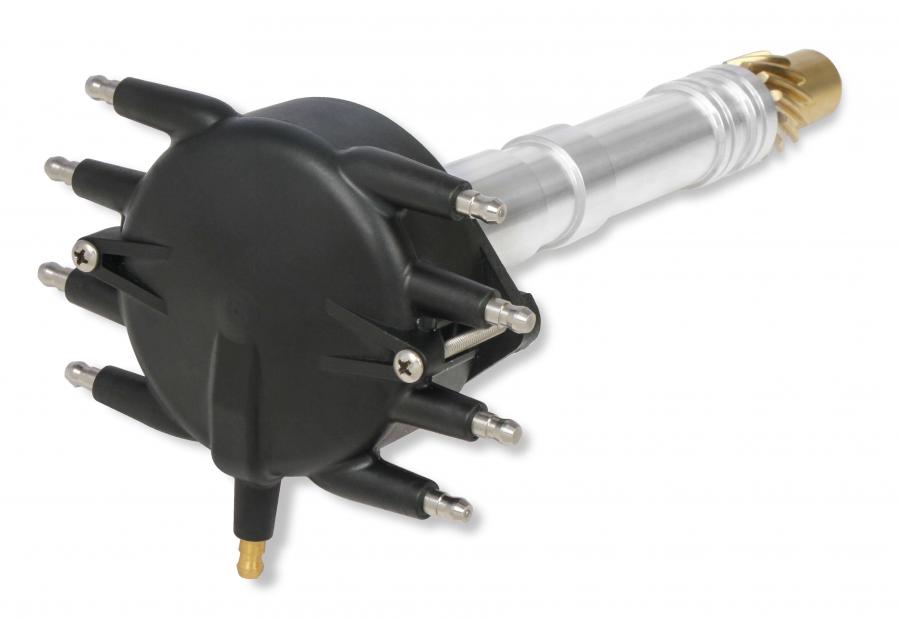

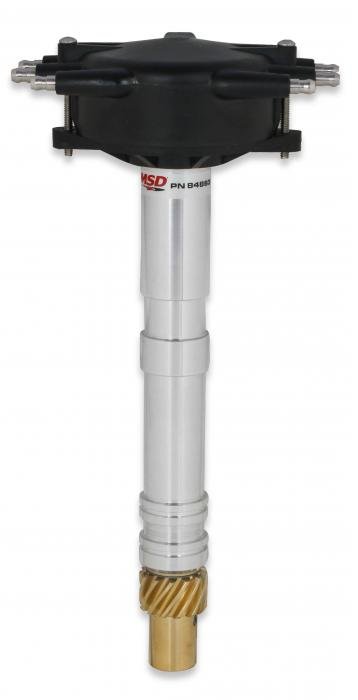

MSD Chevy Super Tall Block Black Crab Cap Distributor 84863

MSD Chevy Super Tall Block Black Crab Cap Distributor 84863
MSD Chevy Super Tall Block Black Crab Cap Distributor 84863MSD Chevy Super Tall Block Black Crab Cap Distributor 84863MSD Chevy Super Tall Block Black Crab Cap Distributor 84863MSD Chevy Super Tall Block Black Crab Cap Distributor 84863MSD Chevy Super Tall Block Black Crab Cap Distributor 84863
$758.99 ea
NEWARRIVING SOONEstimated Ship Date 12/26/2024 (If Ordered Today)6 Available from HOLLEY PERFORMANCE PRODUCTS as of 12/10/2024
Model: 4017783
STANDARD
DELIVERY
STORE PICKUP
[More Info]
MSD's Super Tall Crab Cap distributor is taller to fit special racing blocks such as the Allen Root or Rocket blocks. Crab Cap Distributors are built specifically for racing engines with almost no room for a distributor due to tunnel rams or blowers. The distributor is equipped with a special low-profile crab style distributor cap to allow it to fit in extremely tight areas. The housing features two optional O-rings at the bottom that improve oil control by preventing oil pressure loss. Also, a small oil bleed hole located in the base sprays oil on the distributor and camshaft gears to prevent excessive wear. Since this is a racing distributor, there is an adjustable slip collar to make up for engines that have had the distance between the mounting surface and the gear modified. Crowning this distributor is MSD's own Crab Cap! This cap incorporates spark plug style terminals for a better connection and grip to the plug wires while providing excellent clearance since plug wires exit the side of the cap
Features:
  • Designed to fit low in the block to clear firewall and intake combinations
  • Must be used with an MSD Crank Trigger and MSD Ignition Control

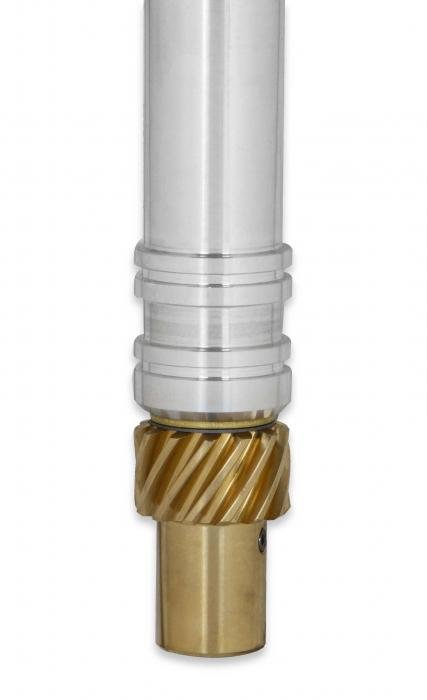

  • Supplied with small, low crab style distributor cap, rotor and bronze gear
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Special oil tract improves lubrication to the distributor and cam gear
  • Shaft is guided by a sealed ball bearing and an extra-long sintered bushing
  • Oversized polished steel shaft with a QPQ coating for friction reduction
  • Adjustable slip collar for engines with modified deck heights
  • CNC machined billet aluminum housing and durable composite base
  • 0.500” taller housing for extra tall Chevrolet based engine blocks
Must be used with an MSD 6, 7, or 8-series ignition and a crank trigger.
Installation Notes:
Must be used with an MSD 6, 7, or 8-series ignition and a crank trigger.

About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Specifications:

Emission Code 4
Gear Bronze
Part Type Distributor
Product Type Distributor
Proposition 65 www.P65Warnings.ca.gov
Warranty Limited 1 Year Warranty
