MSD Blaster HVC-2 6 Series Ignition Coil 8253

MSD Blaster HVC-2 6 Series Ignition Coil 8253
MSD Blaster HVC-2 6 Series Ignition Coil 8253MSD Blaster HVC-2 6 Series Ignition Coil 8253MSD Blaster HVC-2 6 Series Ignition Coil 8253MSD Blaster HVC-2 6 Series Ignition Coil 8253MSD Blaster HVC-2 6 Series Ignition Coil 8253MSD Blaster HVC-2 6 Series Ignition Coil 8253
$471.99 ea
NEWARRIVING SOONEstimated Ship Date 10/16/2023 (If Ordered Today)76 available from HOLLEY PERFORMANCE PRODUCTS as of 09/23/2023
Model: 4017591
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY

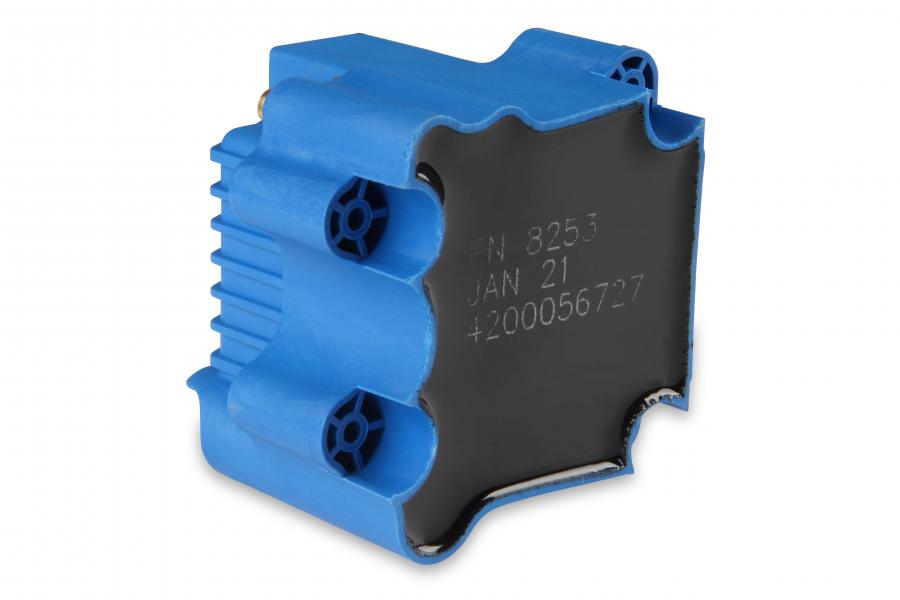

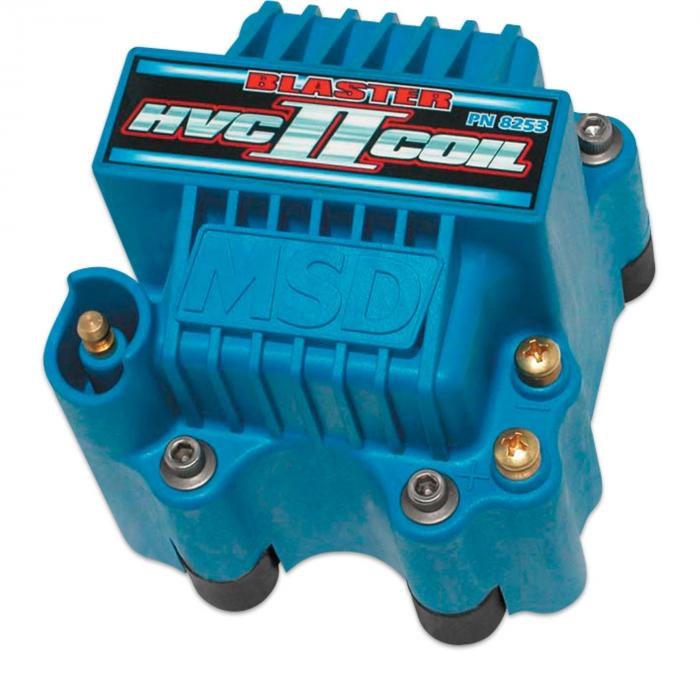

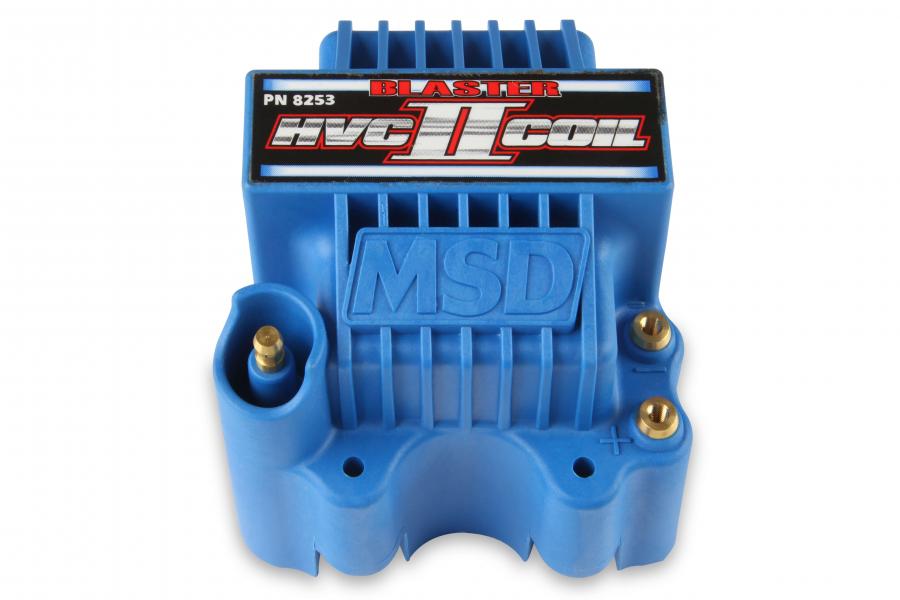

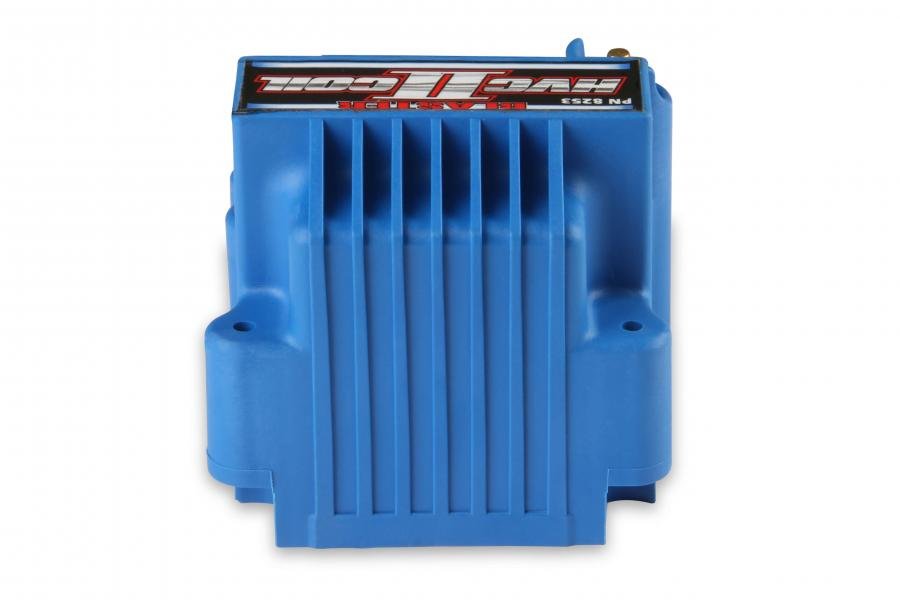

The latest coil to be built entirely in-house at MSD is designed to be used with MSD 6 and SCI Series ignition Controls. This coil utilizes an iron u-core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special DuPont rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time. The blue housing is also molded from high dielectric rynite material. The brass primary terminals are spaced far apart and the secondary tower is well protected for increased spark isolation. The housing is completely coated with an epoxy compound for vibration resistance and installs with sturdy vibration mounts.
Features:
  • For high rpm/long duration applications using MSD 6 Series Ign.
  • New U-core winding design produces more voltage and current
  • 100:1 Turns Ratio
  • Lower Primary Resistance Produces High Voltage Output
  • Windings encased in fracture resistant compound for vibration
  • Rynite housing w/isolated tower and brass primary terminals

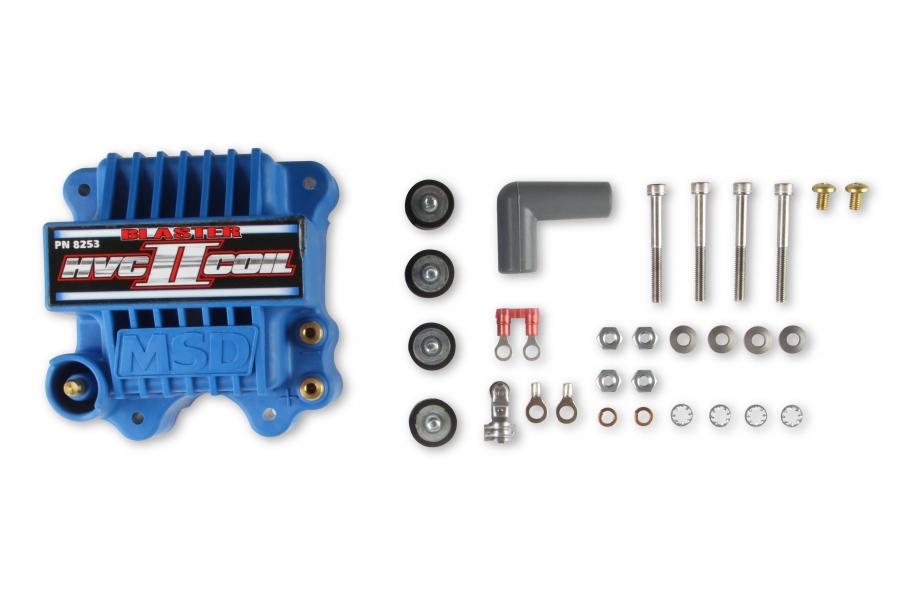

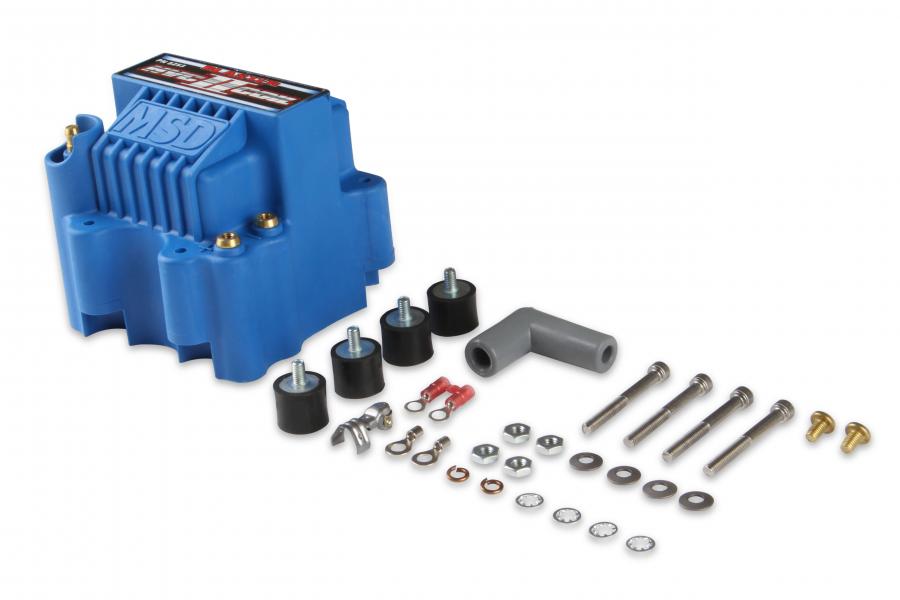

  • Supplied w/Rubber Shock Mounts
  • No CARB Exemption Order Number
Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name File Size
8253.pdf203.49KB

Videos:

Specifications:

Emission Code 4
Inductance 3.5 mH
Item Weight 3.750 lbs.
Maximum Voltage 44000
Part Type Ignition Coil
Peak Current 450 mA
Primary Resistance .160 ohms
Secondary Resistance 630 ohms
Spark duration 450 uS, 450 uS
Turns Ratio 100:1
WARNING CA Proposition 65 WARNING: Cancer and Reproductive Harm
Weight 3.75 Lbs
