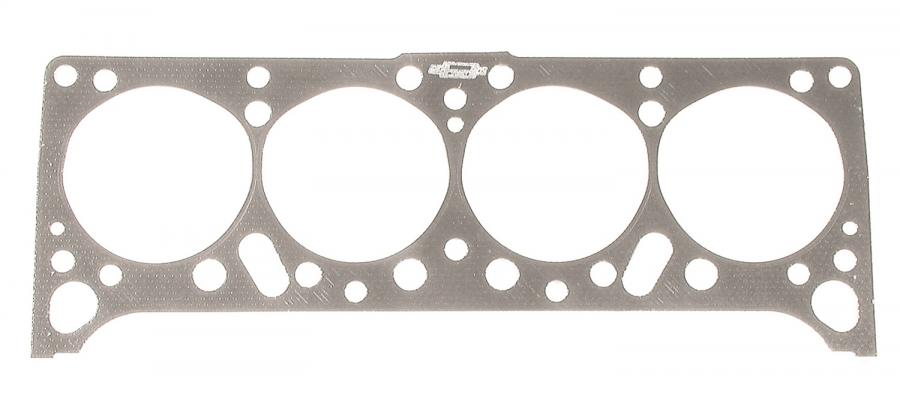

Mr. Gasket Ultra-Seal Head Gasket 5810G

Name: Mr. Gasket Ultra-Seal Head Gasket 5810G
Brand: Mr. Gasket
SKU: 4011796
Price: 108.99 CAD
Availability: OnlineOnly

$108.99 ea

NEWOut of stock with our supplier as of 01/05/2024

Model: 4011796

0 reviewsWrite a Review Add to Wish List

Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.

CALL US
877.454.7792

Description Vehicle Fitment Downloads Specifications Reviews (0) Product Q&A Related Products

Mr. Gasket Ultra-Seal Head Gaskets are a five layer (graphite core/perforated steel outer layers) composite construction. The graphite core has excellent thermoconductivity (transfers heat) away from hot spots in head preventing gasket burn-out. They provide excellent stability, compressibility and high temperature endurance. A high temperature silicone coating ensures sealing of engine fluids. Compatible with cast iron or aluminum heads, they will not brinell (indent) aluminum cylinder heads. Suitable for high performance street, drag race and oval track use. Sold individually.

Gasket Bore 4.250 inch, Compressed thickness 0.038 inch

Features:

Five layer (graphite core/perforated steel outer layers) composite construction
Graphite core has excellent thermo-conductivity-transfers heat away from hot spots in head preventing gasket burn-out
Provides excellent stability, compressibility and high temperature endurance
Coated with high temperature silicone to ensure sealing of engine fluids
Will not brinell (indent) aluminum cylinder heads
For high performance street, drag race and oval track use

Downloads:

Download Name	File Size
97140221.pdf	145KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.

Make	Model	Submodel	Years	Engine	Fitment Notes
Pontiac	GTO	Base	1964	6.4L / 389 / V8
Pontiac	GTO	Base	1965	6.4L / 389 / V8
Pontiac	GTO	Base	1966	6.4L / 389 / V8
Pontiac	GTO	Base	1967	6.6L / 400 / V8
Pontiac	GTO	Base	1968	6.6L / 400 / V8
Pontiac	GTO	Base	1969	6.6L / 400 / V8
Pontiac	GTO	Base	1970	6.6L / 400 / V8 7.5L / 455 / V8
Pontiac	GTO	Base	1971	6.6L / 400 / V8 7.5L / 455 / V8
Pontiac	GTO	Base	1972	6.6L / 400 / V8 7.5L / 455 / V8
Pontiac	GTO	Base	1973	6.6L / 400 / V8 7.5L / 455 / V8
Pontiac	GTO	The Judge	1970	6.6L / 400 / V8 7.5L / 455 / V8
Pontiac	GTO	The Judge	1971	7.5L / 455 / V8
Pontiac	GTO		1970	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	GTO		1971	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	GTO		1972	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	GTO		1973	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	Grand Prix	Base	1964	6.9L / 421 / V8 6.4L / 389 / V8
Pontiac	Grand Prix	Base	1965	6.9L / 421 / V8 6.4L / 389 / V8
Pontiac	Grand Prix	Base	1966	6.9L / 421 / V8 6.4L / 389 / V8
Pontiac	Grand Prix	Base	1967	6.6L / 400 / V8 7.0L / 428 / V8
Pontiac	Grand Prix	Base	1968	6.6L / 400 / V8 7.0L / 428 / V8
Pontiac	Grand Prix	Base	1969	6.6L / 400 / V8 7.0L / 428 / V8
Pontiac	Grand Prix	Base	1970	6.6L / 400 / V8 7.5L / 455 / V8
Pontiac	Grand Prix	Base	1971	6.6L / 400 / V8 7.5L / 455 / V8
Pontiac	Grand Prix	Base	1972	6.6L / 400 / V8 7.5L / 455 / V8
Pontiac	Grand Prix	Base	1973	6.6L / 400 / V8 7.5L / 455 / V8
Pontiac	Grand Prix	Base	1974	6.6L / 400 / V8 7.5L / 455 / V8
Pontiac	Grand Prix	Base	1976	6.6L / 400 / V8 7.5L / 455 / V8 5.7L / 350 / V8
Pontiac	Grand Prix	LJ	1975	7.5L / 455 / V8 6.6L / 400 / V8
Pontiac	Grand Prix	SJ	1975	7.5L / 455 / V8 6.6L / 400 / V8
Pontiac	Grand Prix	SJ	1976	7.5L / 455 / V8 6.6L / 400 / V8
Pontiac	Grand Prix		1970	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	Grand Prix		1971	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	Grand Prix		1972	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	Grand Prix		1973	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	Grand Prix		1974	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	Grand Prix		1975	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	Grand Prix		1976	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	LeMans	Base	1964	5.3L / 326 / V8
Pontiac	LeMans	Base	1965	5.3L / 326 / V8
Pontiac	LeMans	Base	1966	5.3L / 326 / V8
Pontiac	LeMans	Base	1967	5.3L / 326 / V8
Pontiac	LeMans	Base	1968	6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	LeMans	Base	1969	6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	LeMans	Base	1970	7.5L / 455 / V8 6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	LeMans	Base	1971	7.5L / 455 / V8 6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	LeMans	Base	1972	7.5L / 455 / V8 6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	LeMans	Base	1973	7.5L / 455 / V8 6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	LeMans	Base	1974	7.5L / 455 / V8 6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	LeMans	Base	1975	6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	LeMans	Base	1976	7.5L / 455 / V8 6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	LeMans	Luxury	1972	5.7L / 350 / V8 7.5L / 455 / V8
Pontiac	LeMans	Luxury	1973	5.7L / 350 / V8 7.5L / 455 / V8
Pontiac	LeMans	Luxury	1974	5.7L / 350 / V8 7.5L / 455 / V8
Pontiac	LeMans	Safari Luxury	1974	5.7L / 350 / V8 7.5L / 455 / V8
Pontiac	LeMans	Safari	1969	5.7L / 350 / V8 6.6L / 400 / V8
Pontiac	LeMans	Safari	1970	5.7L / 350 / V8 7.5L / 455 / V8 6.6L / 400 / V8
Pontiac	LeMans	Safari	1973	5.7L / 350 / V8 7.5L / 455 / V8 6.6L / 400 / V8
Pontiac	LeMans	Safari	1974	5.7L / 350 / V8 7.5L / 455 / V8 6.6L / 400 / V8
Pontiac	LeMans	Safari	1975	6.6L / 400 / V8
Pontiac	LeMans	Sport Coupe	1976	5.7L / 350 / V8
Pontiac	LeMans	Sport	1970	6.6L / 400 / V8 5.7L / 350 / V8 7.5L / 455 / V8
Pontiac	LeMans	Sport	1971	6.6L / 400 / V8 5.7L / 350 / V8 7.5L / 455 / V8
Pontiac	LeMans	Sport	1972	7.5L / 455 / V8
Pontiac	LeMans	Sport	1973	6.6L / 400 / V8 5.7L / 350 / V8 7.5L / 455 / V8
Pontiac	LeMans	Sport	1974	6.6L / 400 / V8 5.7L / 350 / V8 7.5L / 455 / V8
Pontiac	LeMans	Sport	1975	6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	LeMans	Sport	1976	6.6L / 400 / V8 5.7L / 350 / V8 7.5L / 455 / V8
Pontiac	LeMans	T37	1971	5.7L / 350 / V8 7.5L / 455 / V8 6.6L / 400 / V8
Pontiac	LeMans		1970	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	LeMans		1971	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	LeMans		1972	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	LeMans		1973	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	LeMans		1974	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	LeMans		1976	7.5L / 455 / V8	ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.205 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Pontiac	Tempest	Base	1964	5.3L / 326 / V8
Pontiac	Tempest	Base	1965	5.3L / 326 / V8
Pontiac	Tempest	Base	1966	5.3L / 326 / V8
Pontiac	Tempest	Base	1967	5.3L / 326 / V8
Pontiac	Tempest	Base	1968	6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	Tempest	Base	1969	6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	Tempest	Base	1970	6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	Tempest	Custom	1964	5.3L / 326 / V8
Pontiac	Tempest	Custom	1965	5.3L / 326 / V8
Pontiac	Tempest	Custom	1968	6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	Tempest	Custom	1969	6.6L / 400 / V8 5.7L / 350 / V8
Pontiac	Tempest	Safari	1964	5.3L / 326 / V8
Pontiac	Tempest	Safari	1965	5.3L / 326 / V8
Pontiac	Tempest	Safari	1966	5.3L / 326 / V8
Pontiac	Tempest	Safari	1967	5.3L / 326 / V8
Pontiac	Tempest	Safari	1968	5.7L / 350 / V8 6.6L / 400 / V8
Pontiac	Tempest	Safari	1969	5.7L / 350 / V8 6.6L / 400 / V8

Specifications:

Application	Pontiac
Compressed Thickness	.038 inch
Compression Ratio	Up to 14:1
Emission Code	5
Engine	Pontiac V8
Gasket Bore	4.250 inch
Gasket Line	Ultra-Seal
Material	Graphite Steel
Packaging	Retail
Part Type	Engine Cylinder Head Gasket
Product Type	Head Gasket
Quantity Per Pkg.	1
Warranty	Limited 90 Day TX, Limited 90 Day
Weight	0.5000
