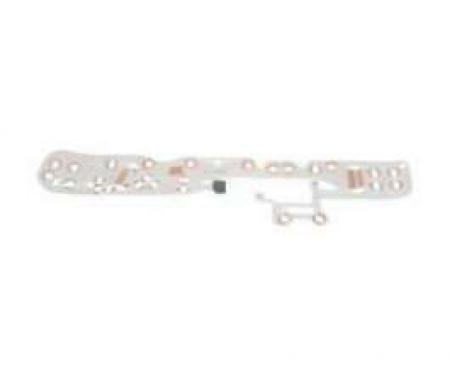

Chevelle Printed Circuit, For Cars With Gauges, 1975-1977

Chevelle Printed Circuit, For Cars With Gauges, 1975-1977
Chevelle Printed Circuit, For Cars With Gauges, 1975-1977
$130.99 ea
NEWLOW STOCK ALERT!Only 1 Left in Stock
Model: 3022663
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

Reproduction Of Original Printed Circuit Located Behind Dash Carrier Correct Plastic Unit With Flat Copper Photo Etched Wiring Replaces Commonly Burned Or Broken Originals Requires 11 P/N 651129-Sold Separately Essential For Proper Gauge And Dash Light Operation NOTE: Because of the vast range of different printed circuits used in 75-77, please verify you are ordering the correct unit by using the GM number imprinted on your original circuit before ordering. This reproduction is of 8986113. After 1969, all 1975, 1976, 1977 Chevelles were equipped from the factory with printed circuits behind the instrument cluster instead of a harness to operate the gauges and lights. Not only was it more cost effective for the factory to use a Chevelle printed circuit, but it saves space, weight and reduces the ?rats nest? of wires typically found behind your cluster. Your 1975, 1976, 1977 Chevelles printed circuit is simply a piece of plastic with conductive copper material embedded in it. Unlike solid hard computer printed circuit boards, these boards are flexible, translucent plastic sheets which operate in the same fashion by conducting electricity to the different dashboard functions. This Chevelle printed circuit can act as a fusible link when using the wrong fuses in your fuse block leading to damaging and costly breaks in the circuit. If your gauges fail or the instrument lighting seems abnormally dim, your Chevelle printed circuit may have gone bad. To easily check this pull your printed circuit and hold it up to a light, you should be able to easily see the break. Be careful your old flexible plastic board might be brittle and rough handling may lead to more substantial damage. If you don?t see yours listed, make sure you let us know. We should be able to get it!

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet Laguna 1975 - 1976
Chevrolet Malibu 1975 - 1977
