Holley GM LT Retro-Fit Oil Pan 302-20

Holley GM LT Retro-Fit Oil Pan 302-20
Holley GM LT Retro-Fit Oil Pan 302-20Holley GM LT Retro-Fit Oil Pan 302-20
$664.99 ea
NEWBackordered until 07/21/2022Out of stock with HOLLEY PERFORMANCE PRODUCTS as of 05/26/2022
Model: 3992613
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

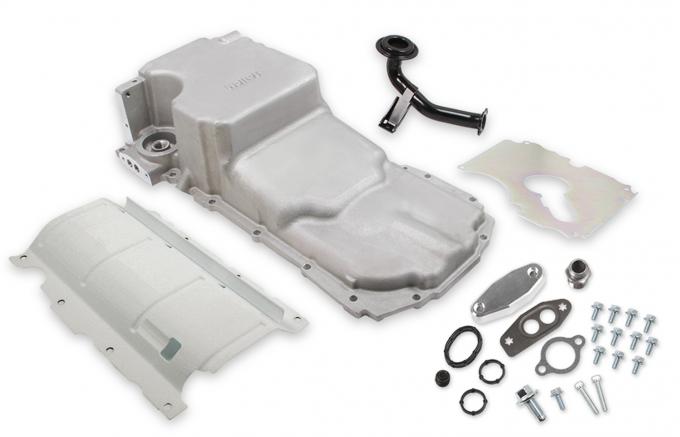

GMs popular LT engines are finding their way into a large variety of vehicles. They make great power, plus they are very durable and reliable. Unfortunately, the factory LT pans do not always fit or they hang too low for today's hot rods. Holley's new LT Retro-fit Engine Oil Pan is designed to help! It provides maximum clearance to the chassis and ground, plus provides an OEM fitment for durability and proper sealing.
Features:
  • For LS Retrofit Req. More Oil Pan To Chassis Clearance At Front
  • Can Be Used anywhere A Gm F-Body Oil Pan Can Be Used
  • Traditional High Quality Alum. Appearance w/Clean Exterior Style
  • Max Clearance For Vehicles w/Steering Linkage Behind Crossmember
  • Oil Cooler Port Provision
Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations
Installation Notes:
Maximum Recommended Crankshaft Stroke 4.00". This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT Dipstick & Dipstick Tube - GM part #s 12661062 (dipstick) and 12678823 (dipstick tube) Some factory LT1 applications include an oil temperature sensor. Currently this pan does not have a boss to install that temperature sensor. If the sensor is desired, it will have to be relocated and machining would be required.
About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r11159.pdf1.31MB

Specifications:

Application GM Gen V LT
Capacity 6.1 qt.
Dipstick Port Yes
Drain Plug Included Yes
Emission Code 5
Engine Make/Size Chevy Gen V
Finish Cast
Material Aluminum
Maximum Stroke 4.00"
Mount Hole Quantity 18
Oil Pan Capacity 6.1 Quarts
Oil Pan Type Cast
Part Type Engine Oil Pan
Pickup Included Yes
Sump Location Rear
Turbo Oil Drainback Yes
Usage Street/Performance
Windage Tray Included Yes
