Flowmaster Scavenger Series Elite Long Tube Header 814110

Flowmaster Scavenger Series Elite Long Tube Header 814110
Flowmaster Scavenger Series Elite Long Tube Header 814110Flowmaster Scavenger Series Elite Long Tube Header 814110Flowmaster Scavenger Series Elite Long Tube Header 814110Flowmaster Scavenger Series Elite Long Tube Header 814110
$1,059.99 ea
NEWBackordered until 06/24/2021Out of stock at HOLLEY PERFORMANCE PRODUCTS as of 06/19/2021
Model: 3162885
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
OVERSIZE 1
STORE PICKUP
[More Info]

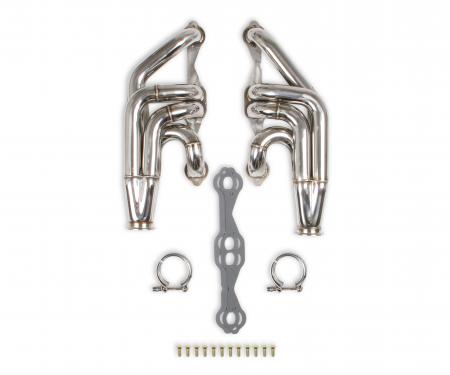

Flowmaster's Scavenger Series Elite long tube headers are designed to replace the restrictive factory cast iron manifolds. These high quality headers are manufactured from stainless steel and are ceramic coated for maximum durability. They feature 1-5/8 in. primary tubes, 3/8 in. thick flanges and incorporate Flowmaster's popular 3 in. ball flange collector connections ensuring a leak free installation. Scavenger Series Elite long tube headers deliver maximum performance and are suited to the enthusiast who wants the best. Like all Flowmaster(R) products the benefits include improved throttle response, power and engine efficiency. Designed for an easy fit these headers include gaskets and necessary hardware for easy installation. Fits D port cylinder heads including ZZ4 crate engines. Does not fit 1967 to 1969 Camaro's with air conditioning. Will fit most angle plug heads including factory Chevrolet bow tie heads. Requires removal or modification of locking steering columns if equipped. Installation requires new left side air conditioning bracket. This product is legal only for off highway use except in California or states that have adopted California emission standards, racing use or for use on pre emission controlled motor vehicles and motor vehicle engines and pre 1966 domestic vehicles certified to California standards, pre 1968 domestic vehicles certified to federal standards and all pre 1968 foreign vehicles, per the application guide.
Features:
  • Stainless Steel Construction
  • Ball And Socket Collector Connections
  • Gasketless Leak Free Ball Flange Connections
  • Dyno Tuned for Maximum Performance
  • High Temperature Ceramic Coated
  • Ceramic Coated For Ultimate Protection
  • Improve Performance/Throttle Response
  • Engineered For Easy At Home Installation
  • 1 Year Warranty
  • Premium Flowmaster Quality
Holley Performance Emission Code 3: This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: 1965 and older U.S. manufactured California Certified vehicles/1967 and older U.S. manufactured Federally Certified vehicles/1967 and older Foreign manufactured vehicle. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle
Installation Notes:
Not Emissions Legal. Must use non-shell type motor mounts.

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Chevrolet Chevelle 1964 5.3L / 327 / V8
4.6L / 283 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Chevelle 1965 5.3L / 327 / V8
4.6L / 283 / V8
5.4L / 327 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Chevelle 1966 5.3L / 327 / V8
4.6L / 283 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Chevelle 1967 5.3L / 327 / V8
4.6L / 283 / V8
5.4L / 327 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Chevelle 1968 5.3L / 327 / V8
5.0L / 307 / V8
5.4L / 327 / V8
5.7L / 350 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Chevelle 1969 5.0L / 307 / V8
5.7L / 350 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Chevelle 1970 5.0L / 307 / V8
6.6L / 400 / V8
5.7L / 350 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Chevelle 1971 5.0L / 307 / V8
6.6L / 400 / V8
5.7L / 350 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Chevelle 1972 5.0L / 307 / V8
5.7L / 350 / V8
6.6L / 400 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Chevelle 1973 5.0L / 307 / V8
5.7L / 350 / V8
6.6L / 400 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet El Camino 1964 5.3L / 327 / V8
4.6L / 283 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet El Camino 1965 5.3L / 327 / V8
4.6L / 283 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet El Camino 1966 5.3L / 327 / V8
4.6L / 283 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet El Camino 1967 5.3L / 327 / V8
4.6L / 283 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet El Camino 1968 5.3L / 327 / V8
5.0L / 307 / V8
5.7L / 350 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet El Camino 1969 5.3L / 327 / V8
5.0L / 307 / V8
5.7L / 350 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet El Camino 1970 5.0L / 307 / V8
6.6L / 400 / V8
5.7L / 350 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet El Camino 1971 5.0L / 307 / V8
5.7L / 350 / V8
6.6L / 400 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet El Camino 1972 5.0L / 307 / V8
5.7L / 350 / V8
6.6L / 400 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet El Camino 1973 5.0L / 307 / V8
5.7L / 350 / V8
6.6L / 400 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet El Camino 1974 5.7L / 350 / V8 1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Malibu 1964 5.3L / 327 / V8
4.6L / 283 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Malibu 1965 5.3L / 327 / V8
4.6L / 283 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Malibu 1966 5.3L / 327 / V8
4.6L / 283 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Malibu 1967 5.3L / 327 / V8
4.6L / 283 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Malibu 1973 5.0L / 307 / V8
5.7L / 350 / V8
6.6L / 400 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use
Chevrolet Malibu 1974 6.6L / 400 / V8
5.7L / 350 / V8
1 5/8 in. Primary; 3.0 in. Ball Flange Collector; 14 Gauge Tubing; 3/8 in. Flange; Silver Ceramic Coating; 409 Stainless Steel;Legal On Non-Emissions Controlled Vehicles Or For Race Use

Specifications:

Application Automotive
Attachment Method Ball and Socket Flange
Automotive Item Grade High Performance Part
Bolts Or Studs Included Yes
Bolts/Studs Included Yes
California Proposition 65 Chemical Name Chromium (hexavalent compounds)
California Proposition 65 Chemical Name 1 Nickel (Metallic)
California Proposition 65 Chemical Name 2 Chromium (hexavalent compounds)
California Proposition 65 Required Yes
CARB (California) Compliant No
Coated Finish Ceramic Coated Stainless Steel
Collector Diameter 3.00 inch
Collector Included Yes
Collector Tube Size 3.000 in.
Color Silver Ceramic
Color/Finish Silver Ceramic
Emission Code 3
Engine Chevrolet Small Block Gen I
Engine Make/Size Chevy Small Block (262-400)
Finish Silver Ceramic
Flange Thickness 0.375 in.
Head Style 4-1 One-Piece
Header Finish Silver Ceramic
Header Flange Thickness (in) 3/8 inch
Header Series Scavenger Series Elite
Header Style Long Tube
Inlet Port Shape Round
Material Stainless Steel
Outlet Diameter 3.000 in.
Outlet Diameter (in) 3
Part Type Exhaust Header
Port Shape Same As Port/Can Be Matched
Primary Tube Dia. 1-5/8 inch
Primary Tube Diameter 1.625 in.
Reducers Included Yes
Tube Diameter 1.625 in.
Tube Direction Up Swept
Tube Gauge 16
Tube Length Unequal Length
Tube Lengths Unequal Length
WARNING CA Proposition 65 WARNING: Cancer and Reproductive Harm
Warranty Time 12 Months
