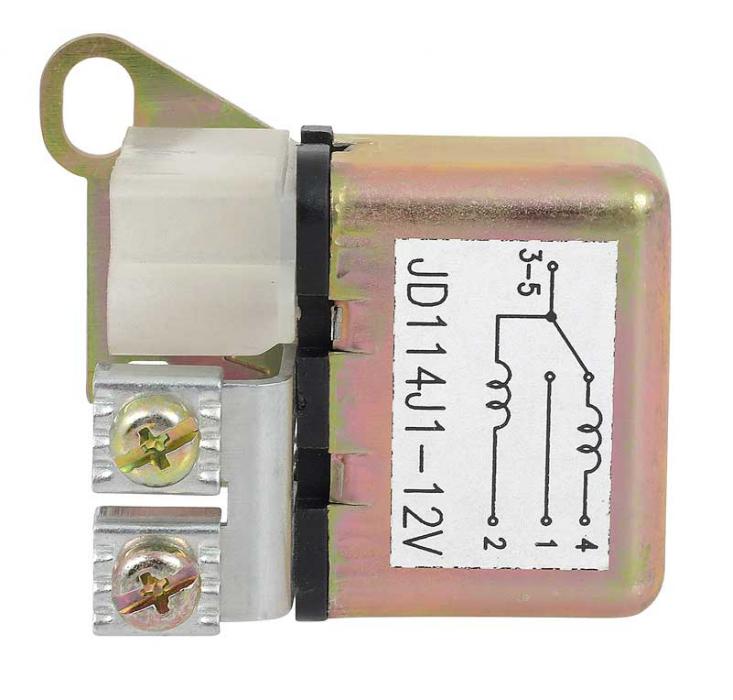

Horn relay designed to adapt the original horn circuit when converting a 1959-1960 Chevrolet El Camino from generator to alternator electrical systems. The relay routes horn current through a dedicated, fused 12V feed so the horn switch carries only a low-control current, protecting original wiring and switches while ensuring consistent horn performance. Built for restoration and replacement applications, it offers robust terminals, corrosion-resistant housing, and a straightforward wiring footprint for reliable, long-term operation.
Features:
- Fits 1959-1960 Chevrolet El Camino.
- Provides a dedicated relay output for horn operation after alternator conversion.
- Reduces load on factory horn switch and wiring to prevent overheating and failure.
- Durable, corrosion-resistant housing and heavy-gauge terminals for reliable connections.
- Simple wiring interface for easy installation during restorations or electrical upgrades.
Installation / Application:
- Difficulty: 2/5
- Estimated time: 30-60 minutes
Instructions:
- Disconnect the negative battery cable before beginning work.
- Locate the horn switch lead (usually the wire going to the horn from the steering column) and the horn(s) themselves; label wires if needed.
- Mount the relay in a dry, secure location near the firewall or inner fender using existing holes or a small screw/bolt.
- Identify relay terminals: 30 (fused 12V input), 85 (ground), 86 (trigger from horn switch), 87 (switched output to horn).
- Run a fused 12V feed from an ignition-switched source to relay terminal 30. Use an inline fuse (10–20A) close to the battery or power source.
- Connect the horn switch lead to relay terminal 86. If the original horn lead was grounded on button press, confirm polarity with a multimeter.
- Connect relay terminal 87 to the horn’s positive lead (or to the harness feeding the horn).
- Secure relay terminal 85 to a good chassis ground or the vehicle ground point.
- Re-check all connections for tightness and proper insulation; use heat-shrink or tape on splices and secure wiring with zip ties.
- Reconnect the battery and test horn operation with the ignition on. Verify that the horn only sounds when the switch is pressed and that the inline fuse remains intact.
- If the horn does not operate, re-check wiring and fuses and confirm proper trigger voltage at terminal 86 with a multimeter.
