Earl's 65 GPH HP in-Line Fuel Pump 1200600ERL

Name: Earl's 65 GPH HP in-Line Fuel Pump 1200600ERL
Brand: Earl's Performance
SKU: 4000193
Price: 688.99 CAD
Availability: OutOfStock

$688.99 ea

NEWOUT OF STOCK

Model: 4000193

0 reviewsWrite a Review Add to Wish List

Supplier has not provided any fitment data for this product.

CALL US
877.454.7792

Description Downloads Video Specifications Reviews (0) Product Q&A Related Products

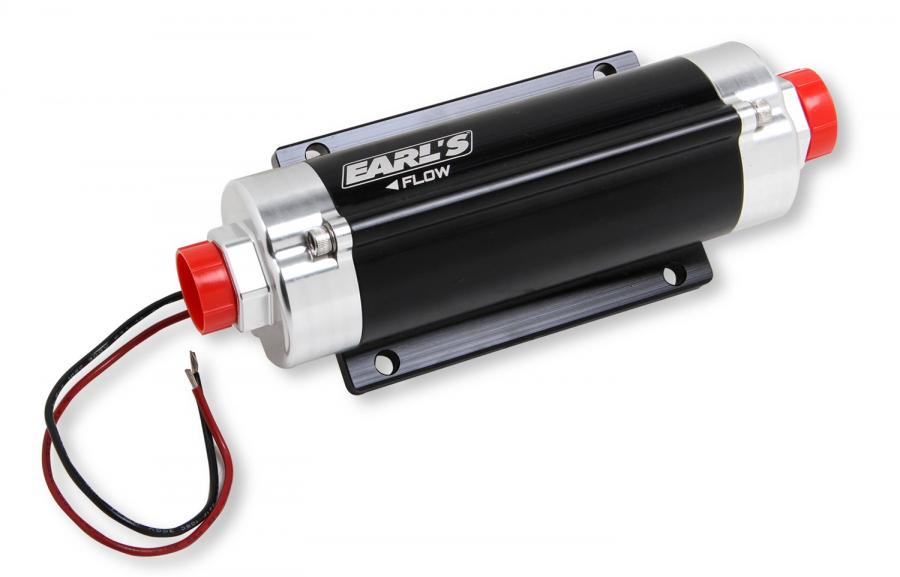

Earl's™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost effective, attractive package. EARL'S, EARL'S,The 1200600ERL features improved hot fuel handling capabilities and was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is compatible for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Earl's has still got you covered with the 1200890ERL fuel pump. HP fuel pumps work well on the street or in racing applications with up to 18.5 volt charging systems and 80 psi

Features:

Billet aluminum construction for durability & good looks
-10 an O-ring inlet and -8 an O-ring outlet for high flow and superior sealing
Excellent for use with carbureted or EFI applications
Fully submersible in-tank for custom applications, space savings and less plumbing
Compatible with 12v to 18.5v systems for street or race use
Compact (7.5” long x 3” wide x 2.75” tall) for easy installation on frame rails or other tight areas
Proven durability beyond 3,000 hours in gasoline
Weighs only 3.1 lbs.
10 AMP maximum amp draw
Not designed for use on aircraft of any type.

These pumps do not have an internal bypass. A bypass style regulator and return line are required.

NOT FOR USE WITH METHANOL!

Will not work with E-85 or Diesel

This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981508ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985081ERL.

Installation Notes:

These pumps do not have an internal bypass. A bypass style regulator and return line are required.

NOT FOR USE WITH METHANOL!

Will not work with E-85 or Diesel

Downloads:

Download Name	File Size
holleyfuelsystems_chart1.pdf	360.32KB
199r11108.pdf	939.78KB

Videos:

Specifications:

Application	Universal
Emission Code	5
Forced Induction HP@43PSI	450
Forced Induction HP@60PSI	380
Forced Induction HP@8PSI	560
Fuel System	Carbureted, EFI
Fuel Type	Gasoline
GPH@43PSI	48
GPH@60PSI	41
GPH@8PSI	65
Inlet Size	10 AN O-Ring - 7/8-14 SAE
LPH@43PSI	181
LPH@60PSI	155
LPH@8PSI	230
Material	Aluminum
Outlet Size	8 AN O-Ring - 3/4-16 SAE
Part Type	Electric Fuel Pump
Product Type	Fuel Pump
Proposition 65	www.P65Warnings.ca.gov
Pump Body Color	Black Anodized
Warranty	Limited 90 Day
