Wilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-10510-R

Wilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-10510-R
Wilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-10510-RWilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-10510-RWilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-10510-RWilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-10510-RWilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-10510-RWilwood Brakes Forged Dynapro 6 Big Brake Front Brake Kit (Hub) 140-10510-R
$1,484.99 ea
NEWARRIVING SOONEstimated Ship Date 12/03/2020 (If Ordered Today)19 available from WILWOOD ENGINEERING as of 05/04/2020
Model: 3920774
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

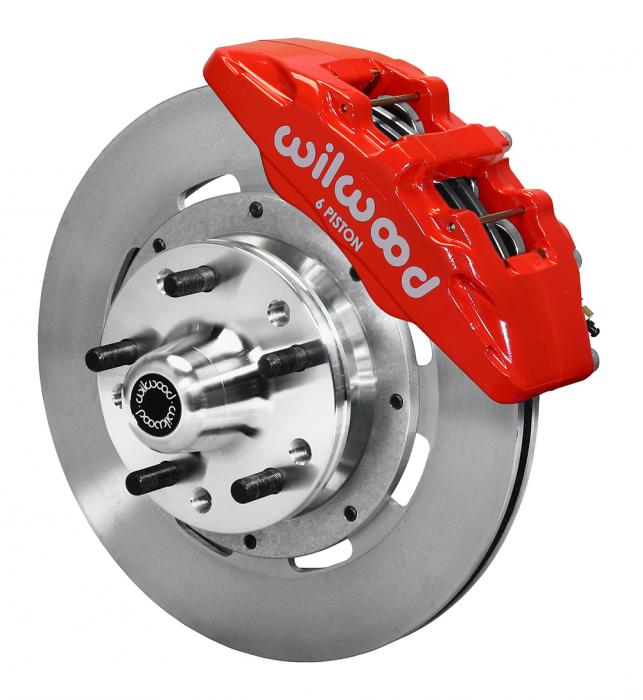

DynaPro 6 forged billet calipers are combined with 12.19” diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.

Fitment Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds617.pdf607.72KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Chevrolet Chevelle 1966 KIT,FRONT,CAMARO,67-69,DP6,12.19 ROTOR RED; RTR:12.19-IN DIA, ULTRALITE HP 32, UNDRILLED; CLPR:DYNAPRO 6, 6-PISTON, RED POWDER COAT
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
Attaches to Spindle
Chevrolet Chevelle 1967 - 1972 KIT,FRONT,CAMARO,67-69,DP6,12.19 ROTOR RED; RTR:12.19-IN DIA, ULTRALITE HP 32, UNDRILLED; CLPR:DYNAPRO 6, 6-PISTON, RED POWDER COAT
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Disc Brake Spindle
Chevrolet Chevelle 1964 KIT,FRONT,CAMARO,67-69,DP6,12.19 ROTOR RED; RTR:12.19-IN DIA, ULTRALITE HP 32, UNDRILLED; CLPR:DYNAPRO 6, 6-PISTON, RED POWDER COAT
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
Chevrolet Chevelle 1965 KIT,FRONT,CAMARO,67-69,DP6,12.19 ROTOR RED; RTR:12.19-IN DIA, ULTRALITE HP 32, UNDRILLED; CLPR:DYNAPRO 6, 6-PISTON, RED POWDER COAT
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
Attaches to Spindle

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
(Increase / Decrease Track Width)
Min Wheel Diameter Req'd* 15
Spindle Type Drop Spindle Factory Disc Spindle Factory Drum Spindle
Mount Type Lug
Caliper Type 6 - Red Powder Coat
Rotor Diameter 12.19
Parts & Accessories / Caliper Parts
Replacement Piston 1 200-7520
Replacement Piston 2 200-7518
CrossOver O-Ring Kit 130-10540
Wear Plate - Left Hand 300-9707
Wear Plate - Right Hand 300-9707
Bleed Screw Kit 220-0627
O-ring Kit 130-10535
Replacement Piston 3 200-7518

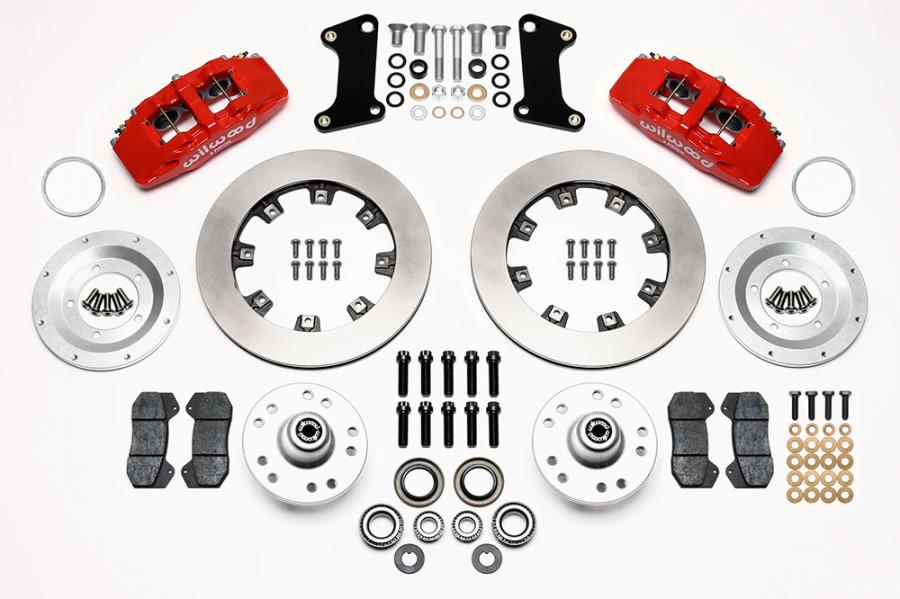

Kit Summary
OE Hub Offset +.19
Kit Components & Specs / Hubs
Hub - Part No 270-7274
Type Hub - Vented Rotor Offset
Material Aluminum
Finish Color Bare
Mount Style Adapter
Bolt Circle 1 5 x 4.50
Bolt Circle 2 5 x 4.75
Stud Diameter - BC 1 1/2-20
Stud Diameter - BC 2 1/2-20
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-7056
Kit Components & Specs / Calipers
Piston 3 Bore (in) 1.38
Pad Compound BP-10
Right Hand - Part No 120-13428-RD
Type Dynapro 6
Finish Color Red Powder Coat
Piston Count 6
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.38
Piston Area (In²) 5.06
Piston Type Stainless
Mount Type Lug
Brake Pad Plate 6712
Brake Pad Area (In²) 7.3
Brake Pad Volume (In³) 2.4
Left Hand - Part No 120-13429-RD
Kit Components & Specs / Rotors
Left Hand - Part No 160-5843
Right Hand - Part No 160-5843
Type Ultralite HP 32
Style Plain Face
Surface Finish Plain
Material Iron
Outside Diameter (in) 12.19
Width (in) 0.81
Vane Count 32 V
Design Type ULHP
Bedded No
Dynamically Balanced No
