For over 26 years, Aeromotive has been committed to designing and manufacturing the highest quality fuel systems and components for OE applications and the automotive aftermarket. A brand backed by integrity and reliability, a passion for performance and a hands-on, real world approach drove Aeromotive to its position as industry leader. Since our previous acquisition in 2015, PerTronix has been searching for a strong automotive brand in its growth cycle with a strong culture that would align well with PerTronix Performance Brands and 2020 brought with it the acquisition of Aeromotive and Waterman Racing Components. Moving forward, our teams will foster collaboration on new product development, processes and best practices with each brand operating from their existing locations to benefit from the capabilities of their respective manufacturing facilities.
| Download Name | File Size |
| 112-0223-0.pdf | 611.37KB |
| Carb HP on E85 | 1820 |
| Carb HP on Gas | 2600 |
| Filter Included | No |
| Fuel Delivery Type | Carbureted |
| Fuel Sending Unit Included | No |
| Fuel Type | Gas/E85 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Inlet Outside Diameter | ORB-10 |
| Inlet Type | Female Thread |
| Integrated Controller | No |
| Marine Approved | No |
| Maximum Current Draw | 14 @ 9 psi |
| Maximum Flow Rating | 350 GPH |
| Maximum Pressure | 20 |
| Motor Style | Brushed |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Outside Diameter | ORB-10 |
| Outlet Type | Female Thread |

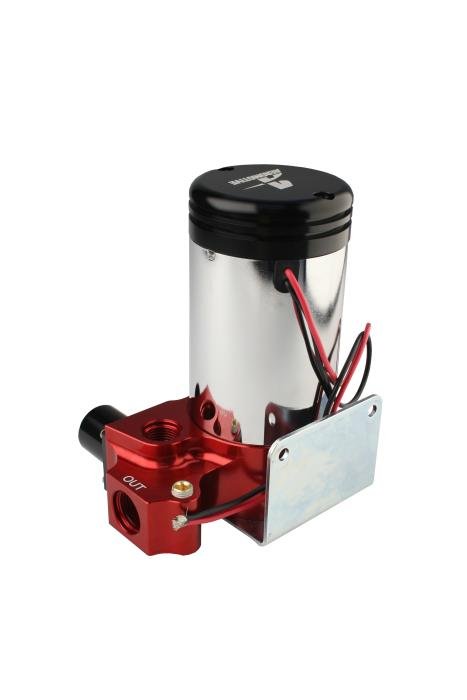

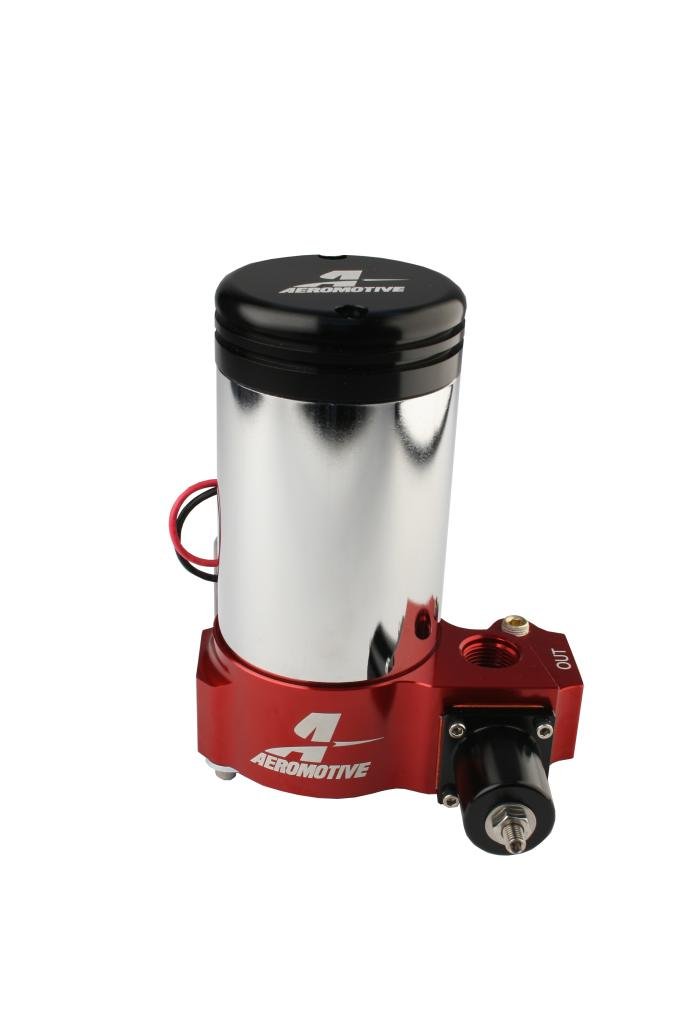

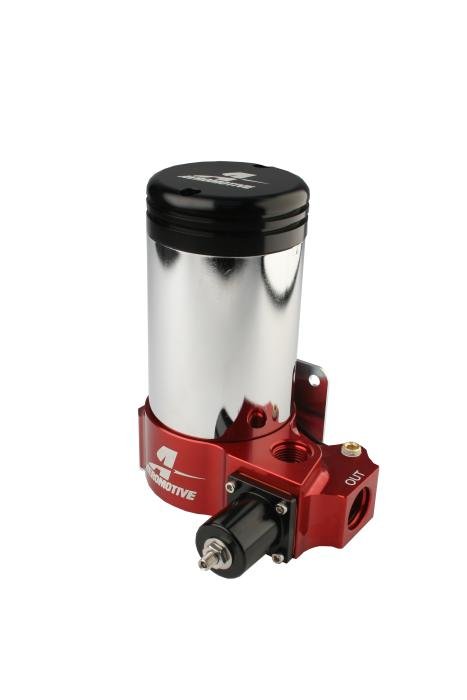

| Part Type | Electric Fuel Pump |
| Prop 65 Flag | Yes |
| Pulse Width Modulation Compatible | Yes |
| Pump Design | Rotary Vane |
| Regulator Included | No |
| Seal And Lock Ring Included | No |
| Series | A2000 |
| Strainer Included | No |
| Terminal Quantity | 0 |
| Terminal Type | Lead Wire |
| Universal Or Specific Fit | Universal |
| Voltage | 12 |
| Warranty Time | 12 Months |
| Wire Quantity | 2 |
| Wiring Harness Included | No |
