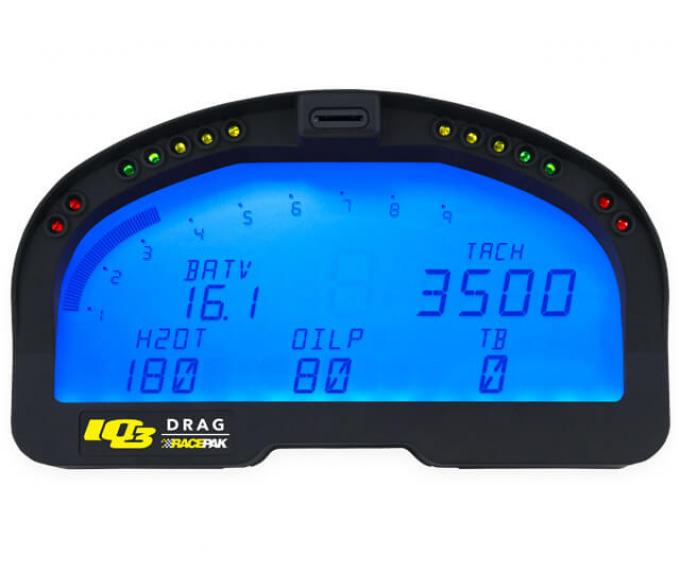

The IQ3D is designed for the sportsman drag racer looking for a compact, all-in-one solution. It combines the look and feel of our popular IQ3 dash with a robust, built-in data logger. Information is displayed on four user-definable pages and recorded data is stored on a microSD memory card located on the face of the dash for easy access. The IQ3D has built-in support for over 20 of the most popular EFI systems. The box includes wiring harness with 2 programming buttons, driveshaft sensor, oil pressure sensor, water temperature sensor, USB programming cable, Racepak Datalink II software and MicroSD card and reader. It is compatible with AEM V2/EMS-4/Infinity EMS / Big Stuff 3 / Electromotive TECGT / EMS EM-Tech ECU / Emtron ECU / FAST XFI / Fuel Tech (200,250,300,350,500v1,500v2, 600) / Holley Dominator / InjPro / Life Racing F88 / Link G4+ Series / MaxxECU / MEFI-4B / MegaSquirt-III (DIY Autotune) / MicroTech / MoTeC CAN (Data set 3) / MSD Atomic LS / MSD Atomic TBI / OBD-II (2008 and later) / Pro EFI / User Configured (CAN bus knowledge required). The IQ3D connects to these ECU systems using EFI adapter cables. Specifications - records engine and driveshaft RPM, oil PSI, water temperature, battery voltage and 12v Event / displays up to 28 inputs via 4 pages / blue dimmable backlight / four user defined alarms / user defined 5 character sensor input names / programmable shift light output for up to six shift points / shielded, low luster display for sunlight viewing / six additional V-Net channels available (2 and 4 channel upgrades available, up to 18 channels) / connects to over 20 aftermarket EFI products including Holley, FAST, Big Stuff 3 and more / shock travel upgrade package available. Dimensions - 7.30 in. (W) x 4.10 in. (H) x 2.10 in. (D) (18.54 cm. x 10.41 cm. x 5.33 cm.) / 1.0 lb. (454 g.)
Features:
- Displays Up To 28 Inputs Via 4 Pages
- Blue Dimmable Backlight
- Four User Defined Alarms
- User Defined 5 Character Sensor Input Names
- Programmable Shift Light Output For Up To Six Shift Points
- Shielded Low Luster Display For Sunlight Viewing
- Connects To Over 20 Aftermarket EFI Products
- Shock Travel Upgrade Package Available
Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations
Installation Notes:
Start Recording: Utilized to start a recording when either button is held for +5 seconds. REC will be displayed in dash display area during recording. The Grey/White wire can be utilized for this function by default.
Compatible ECU systems include the following:
AEM V2/EMS-4
Big Stuff 3
Electromotive TECGT
EMS EM-Tech ECU
Emtron ECU
FAST XFI
Fuel Tech (200,250,300,350,500v1,500v2, 600)
Holley Dominator
InjPro
Life Racing F88
Link G4+ Series
MaxxECU
MEFI-4B
MegaSquirt-III (DIY Autotune)
MicroTech
MoTeC CAN (Data set 3)
MSD Atomic LS
MSD Atomic TBI
OBD-II (2008 and later - for vehicles designed to be sold in the USA)
Pro EFI
User Configured (CAN bus knowledge required)
The IQ3D connects to these ECU systems using EFI adapter cables.
